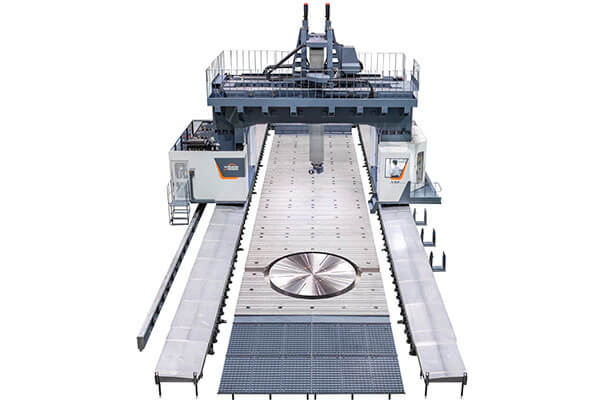

The XMS Series from VISION WIDE is a flagship line of Extremely Mighty Machining Centers specifically developed to meet the demanding requirements for machining large-scale precision components. This moving column machine is characterized by its super large XYZ axis machining space, with X-axis travel ranging from 8-200 mm up to an immense 60-200 mm, and Y-axis options up to 5-200 mm. This massive working envelope makes the XMS ideal for structural parts used in precision machinery, electric power, and petrochemical applications.

The machine is engineered for high-precision positioning and superior heavy cutting capacity. It is equipped with a powerful 22/26 kW spindle, offering optional speeds up to 12-000 rpm via a built-in motor or 6-000 rpm via a 2-step gear system, designed to handle the toughest materials efficiently. The XMS Series excels at fully automatic multi-face machining by seamlessly integrating various automatic attachment heads. These heads facilitate complex angle machining, high tangential speed mold surface machining, and feature an excellent tool tip point error automatic correction function. Furthermore, the machine can be equipped with a high-torque vertical turning table to realize milling and turning compound multitask operations, all supported by tool magazines with capacities up to 60 tools. Standard features like dual linear scales on the X and Z axes and a robust 580 x 580 mm RAM size underscore its commitment to sustained precision and power.
