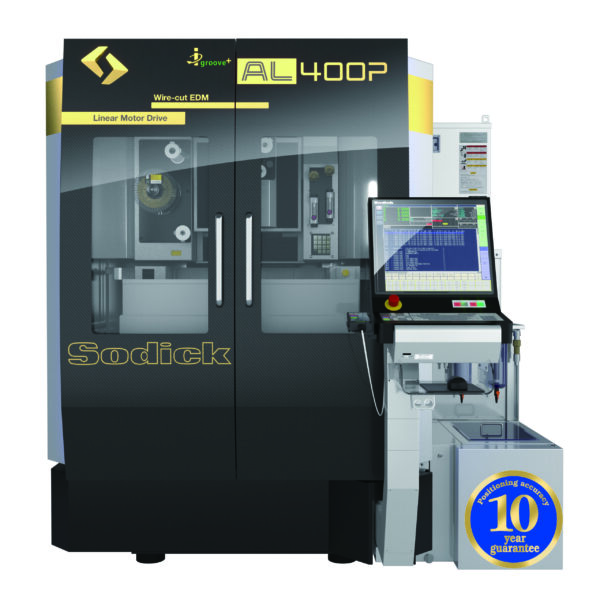

The AL400P iGE+ represents Sodick’s pursuit of ultimate accuracy in Wire Electrical Discharge Machining. This machine is ideal for components where suppressing cumulative pitch error is critical, such as in high-precision progressive press dies. The core of its performance lies in the rigid Linear Motors and the proprietary 4 Axis Linear Motor Drive System used for the X, Y, U, and V axes. Since the linear motor is a direct drive method without a ball screw, it ensures precise axis movements without backlash and is guaranteed to maintain positioning accuracy for 10 years. The generous travel specifications are 15-78 inches (400 mm) in X, 11-81 inches (300 mm) in Y, and 9-84 inches (250 mm) in Z.

The machine’s powerful technology package is designed for peak machining efficiency and quality. The patented iGroove+ Technology continuously rotates the wire electrode, which maximizes the usage of the wire surface, resulting in a combination of increased surface quality and accuracy while drastically reducing wire consumption by up to 39 percent. The advanced NC device includes functions like Barrel-Free Effect Control II to reduce barreling during machining and TMP Control II, which improves the surface roughness of the second cut, allowing for high-speed finish machining. Additionally, the Thermal Commit (TH COM) function uses sensing and precise correction to minimize thermal displacement caused by temperature changes or high-speed driving- ensuring stable accuracy across all operating conditions.
