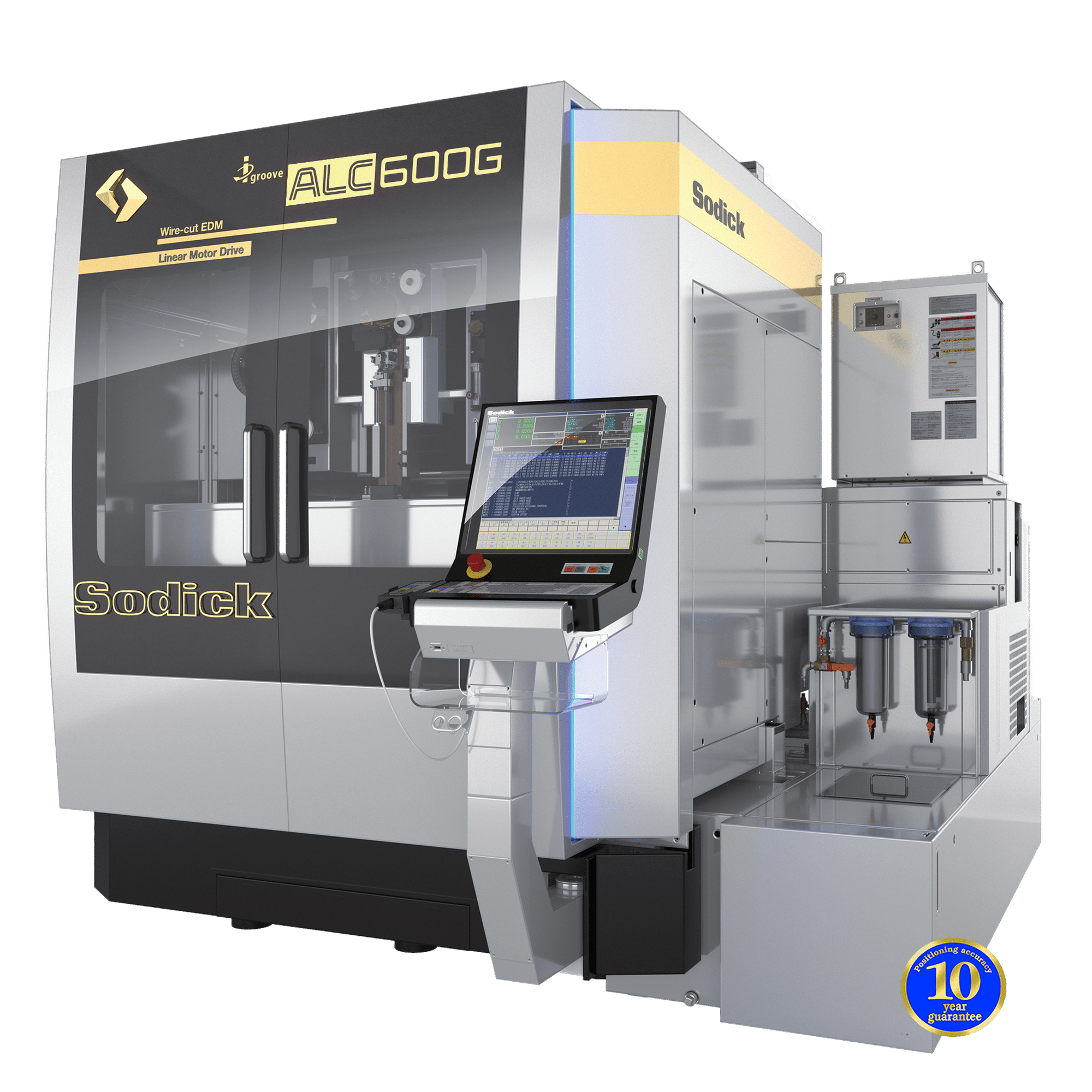

The ALC600G iGE+ is a state-of-the-art Wire EDM machine representing the pinnacle of Sodick’s electrical discharge machining technology. Designed for high-speed and high-precision operation, its core is the use of rigid flat linear motor drives on all four main axes (X, Y, U, and V), which eliminate backlash and are so reliable they come with an industry-leading 10-Year Positioning Accuracy Guarantee. The machine’s rigid cast construction and advanced Thermal Commit (TH COM) function further ensure a stable platform that minimizes thermal displacement, guaranteeing high precision over long machining runs.

Productivity is significantly enhanced by its proprietary technologies. The Smart Pulse Generator drastically reduces the number of cuts needed to achieve the required accuracy and surface finish. Combined with the patented iGroove+ technology, which continuously rotates the wire during machining, the system can reduce wire consumption by up to 39 percent while boosting surface quality and part accuracy. The machine offers generous travel, with an X-Axis travel of 23.62 inches (600 mm) and a maximum workpiece weight capacity of 2-204 lbs (1-000 kg).

Usability and safety are paramount. The ALC600G iGE+ is CE Specification Compliant and features a full security enclosure. It is controlled by the SPW (Smart Pulse Wire) Control system, which features a streamlined interface on a responsive 19-inch LCD touch panel screen. The Intelligent Q³vic EDW system allows for automatic programming by importing 3D CAD files, simplifying setup, and saving programming hours. The energy-saving design is also eco-friendly, offering up to a 60 percent reduction in average energy consumption compared to conventional EDMs.
