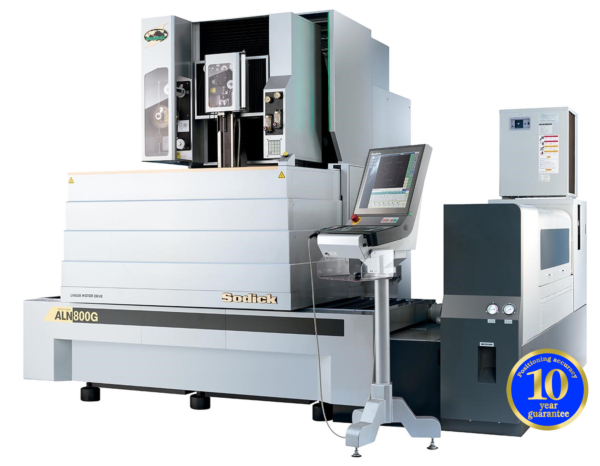

The ALN800G is a state-of-the-art Wire EDM machine from the SODICK ALN series, engineered for high-performance and high-precision electrical discharge machining. It is built with a rigid cast construction to provide a stable platform and features flat, rigid, linear motor drives on the X, Y, U, and V axes. These proprietary linear motors have no backlash and, when coupled with absolute linear scales, ensure superior cutting precision and are backed by Sodick’s 10-Year Positioning Accuracy Guarantee.

This model excels at high-speed processing thanks to the integrated Smart Pulse Generator and the SPW (Smart Pulse Wire) Control, which combines a classic interface with a highly functional 19-inch LCD touch panel for user-optimized operation. Key features that enhance productivity include Intelligent Q³vic EDW– an automatic programming system that imports 3D CAD files- and Advanced Step Machining technology. For finishing, the machine is equipped with Digital Pika-W Plus– a super finishing circuit- and the TMP II Surface Finishing Circuit. The large work-zone accommodates workpieces with 31.50 inches (800 mm) of X-Travel and up to 6-614 lbs (3-000 kg). The 3-sided rise-fall worktank provides excellent ergonomic access and a no-drip feature for a cleaner environment, while the Fixed Jet High Speed AWT ensures reliable automatic wire threading. The ALN800G also features an Energy Saving Circuit, reducing average energy consumption by up to 60 percent compared to conventional EDMs.
