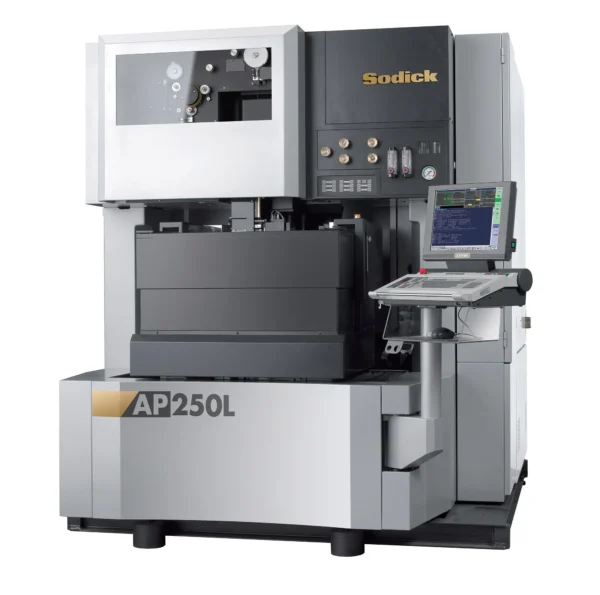

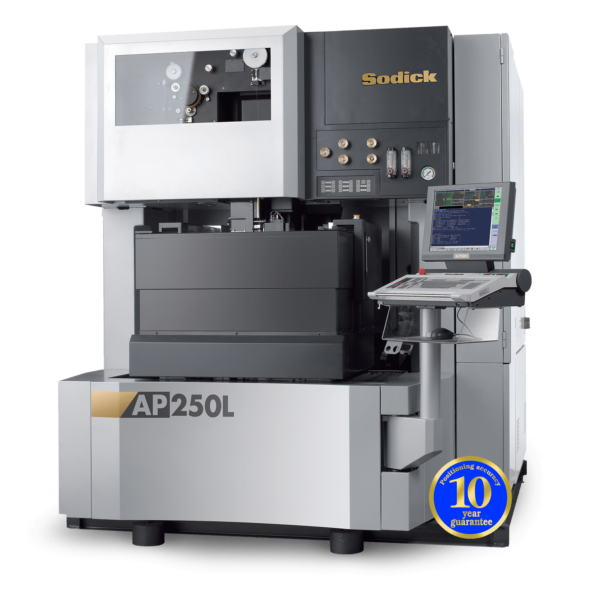

The AP250L Wire EDM Machine is a part of Sodick’s premier AP Series- representing their line of high-end, high-precision solutions. The machine’s core strength is its flat rigid linear motor drive system on the X- Y- U- and V-axes, coupled with absolute glass scale feedback and a robust bridge design. This combination ensures backlash-free, precise axis movement and superior positional accuracy, backed by Sodick’s 10-Year Positioning Accuracy Guarantee.

Specifically, the oil dielectric model features revolutionary Eco-Cut O Technology. This allows the machine to process hard materials like carbide and fully eliminate the risk of cobalt depletion—a problem common with water dielectric systems. Eco-Cut O enhances cutting performance, offering machining speeds that are up to 25 percent faster than conventional oil dielectric EDM and 12 percent faster than water dielectric, enabling a superior surface finish and accuracy with fewer cuts.

The AP250L provides generous travel capacities, including 9-84 inches of X-axis travel and a maximum workpiece weight of 176-4 lbs (80 kg). Its design incorporates a 3-Sided Rise-Fall Worktank for easy setup and ergonomic accessibility, and a High-Speed Automatic Wire Threader with annealing to improve wire straightness and AWT repeatability. Furthermore, the machine features the SPW power supply unit with “Perfect Active Control” and an Energy Saving Circuit, demonstrating its focus on both performance and eco-friendliness.
