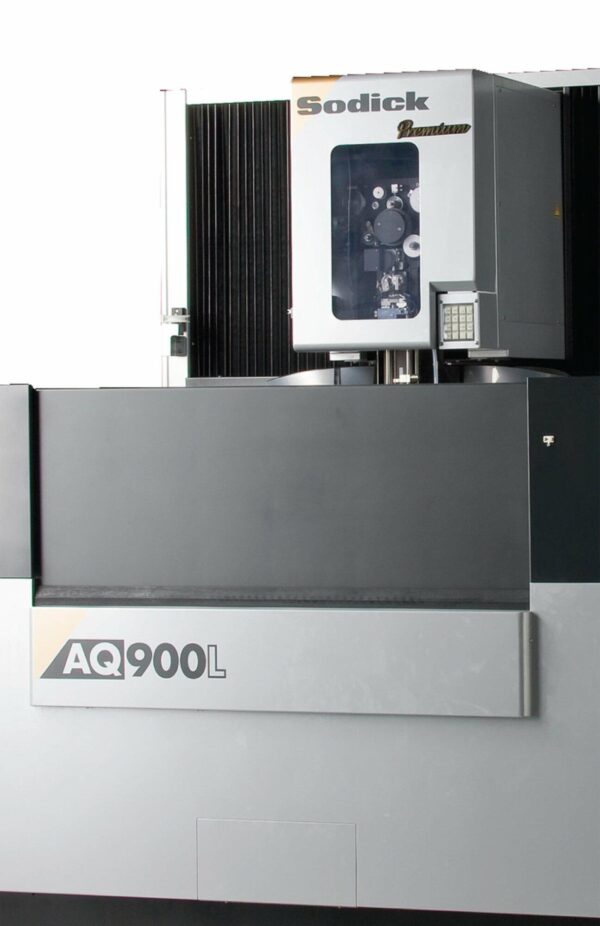

The AQ900L is a highly rigid, large-format Wire EDM machine from the Sodick AQ Series, specifically designed to maintain the highest quality and accuracy while machining heavy workpieces up to 4-409 lbs (2-000 kg). Its core is built around Sodick’s flat, rigid, Linear Motor Drives, which directly eliminate the backlash and friction associated with traditional ball-screws and couplings. This results in superior positioning accuracy, a feature reinforced by Glass Scale Feedback on all primary axes, ensuring unmatched straight and taper cutting performance. This machine is proudly backed by a 10-Year Positioning Accuracy Guarantee.

The machine offers a generous X, Y, and Z travel of 35-43 inches, 23-62 inches, and 15-75 inches, respectively. It supports submerged machining, which is critical for thermally stabilizing the cutting zone to achieve higher accuracy when working with irregularly shaped parts or extreme taper angles.

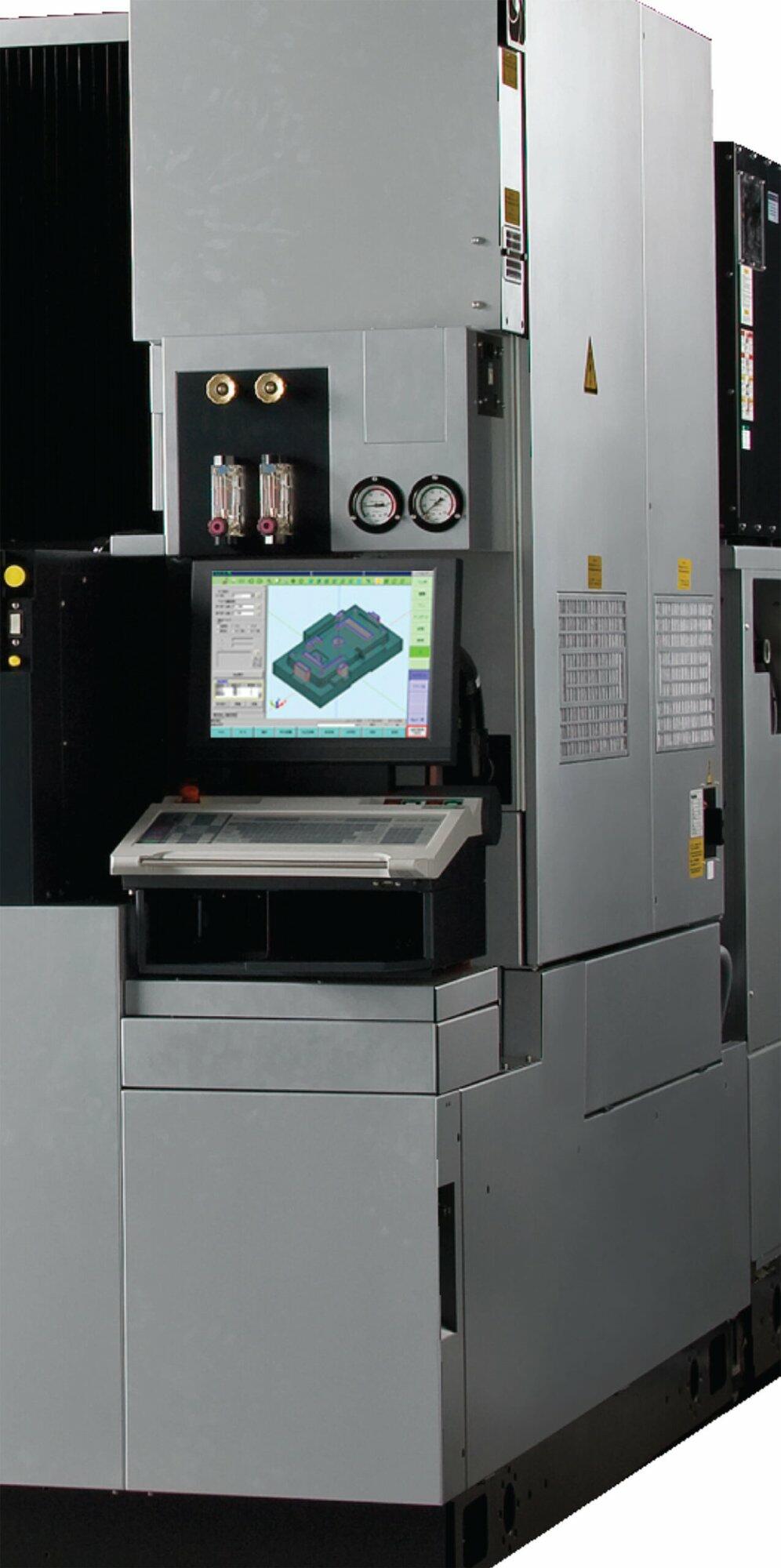

The AQ900L features Sodick’s advanced technology suite, including Advanced Corner Control, a High Speed Electrolysis-Free Power Supply, and an Automatic Tension Servo Control that precisely manages wire tension. Operation is simplified by the user-friendly Heart NC Software control system, which can automatically generate optimal cutting conditions, making it effective for both experienced and novice operators. Furthermore, the AQ900L is an eco-friendly machine, designed to reduce average energy consumption by up to 60 percent compared to conventional EDM systems.
