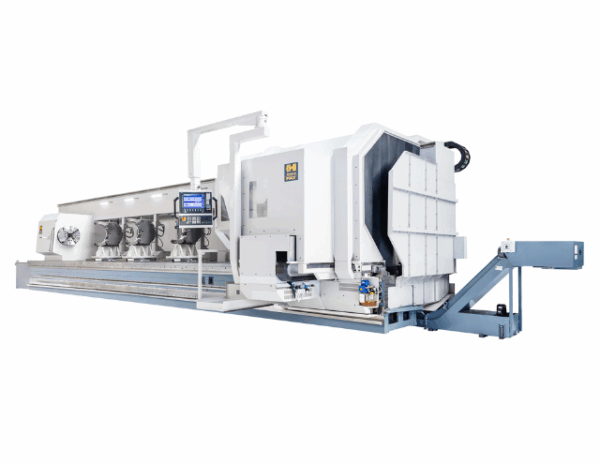

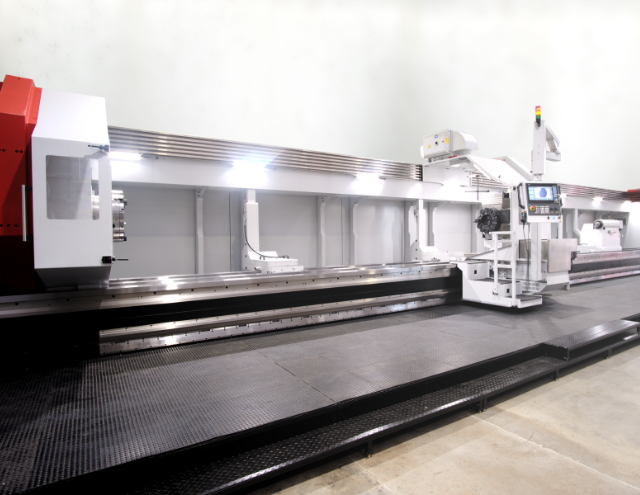

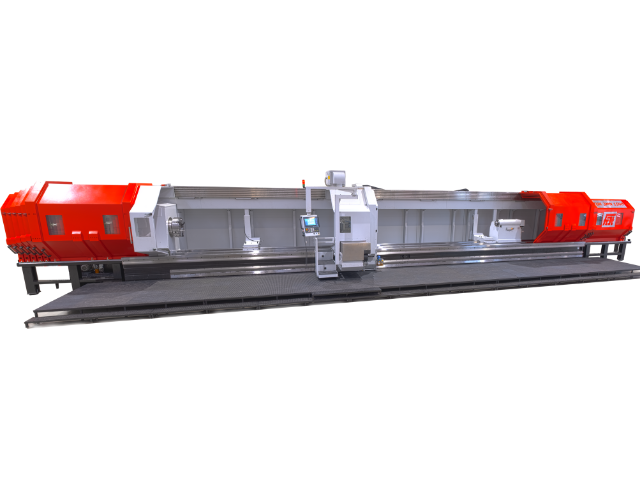

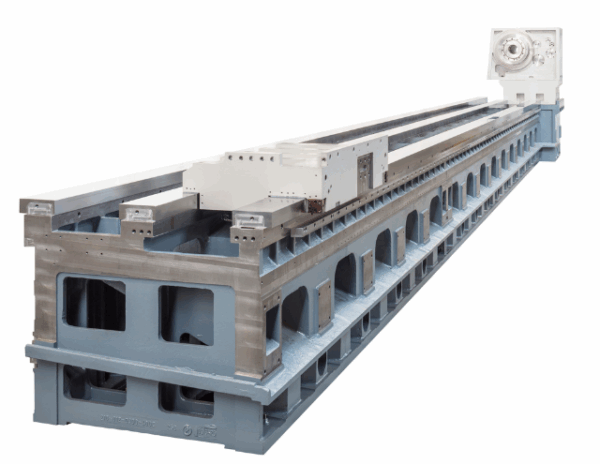

The FAT HACO Tur 3MN is a high-performance CNC lathe built for the demanding job of machining heavy and large-diameter components. Classified as a lighter iteration of FAT HACO’s renowned 4-guideway lathes, the Tur 3MN provides impressive capacity, handling workpieces with a maximum diameter of 1900 mm (swing over bed). Its core strength lies in its modular construction: the machine segments are precisely joined, enabling the lathe to be built in various lengths to meet individual customer requirements, with distances between centers ranging from 4-000 mm up to an extended 19-200 mm.
The Tur 3MN features a heavy-duty headstock with two spindle speed ranges, delivering substantial torque up to 28-000 Nm and a main drive motor power of 60 kW (S1 – 100%). The machine is built for stability during heavy cuts, supporting a maximum weight of 12-000 kg between centers as standard (with an optional upgrade to 20-000 kg or 30-000 kg). Rapid travels in both the X and Z axes are consistent at 6 m-min, ensuring efficient tool positioning across the machine’s substantial travel distances. This makes the Tur 3MN an ideal solution for sectors requiring the highest level of precision in large-scale turning applications.
The FAT HACO Tur 3MN is a heavy-duty CNC lathe designed for machining very large workpieces, offering a maximum swing over bed up to 1900 mm. It is a lighter version of the 4-guideway models, featuring a modular, segmented design that allows for highly customizable configurations, including a massive 12-000 kg capacity between centers as standard.
