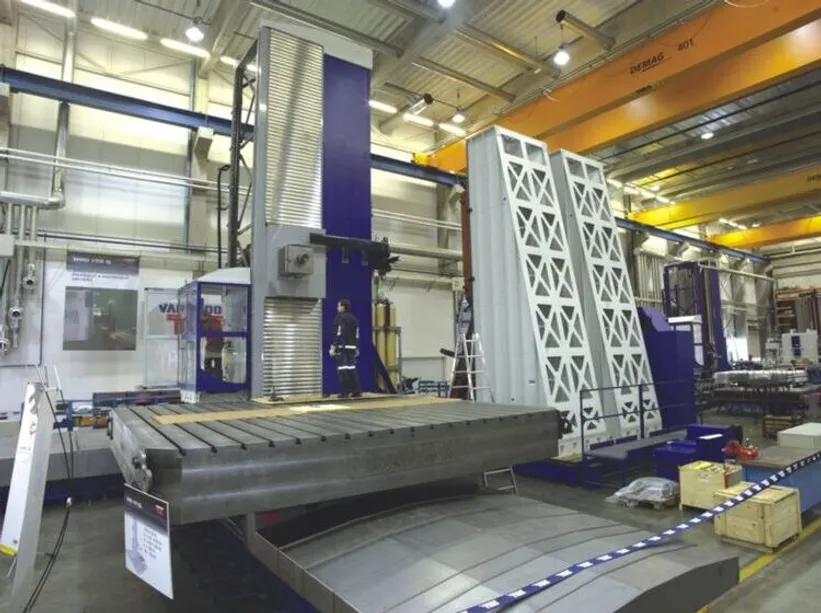

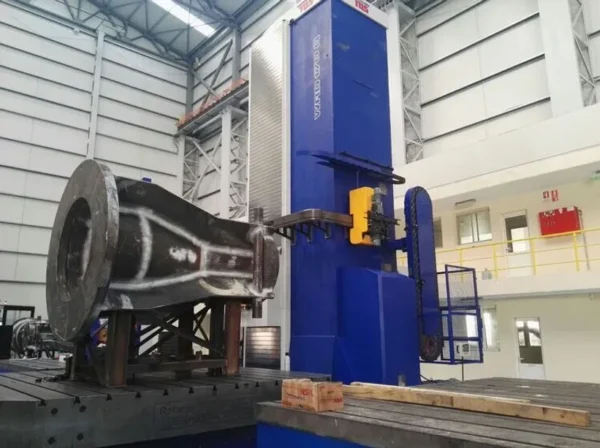

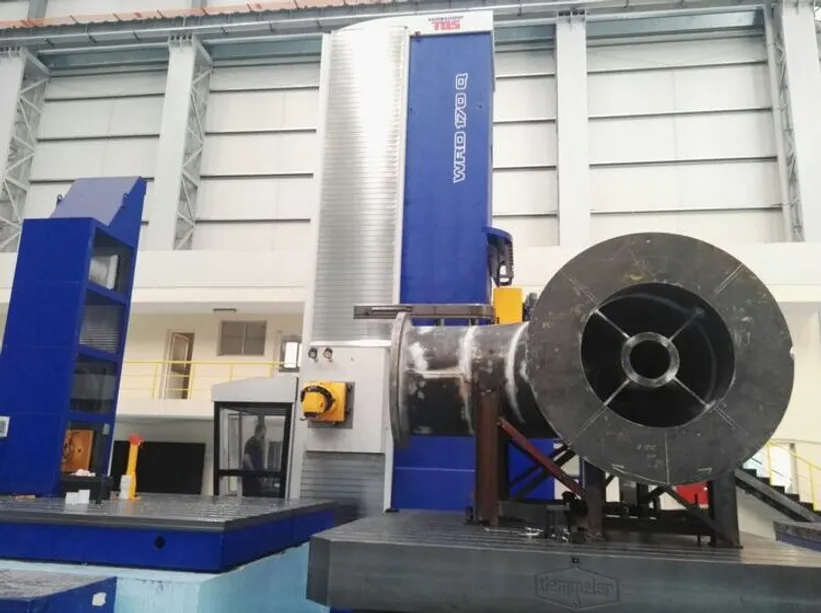

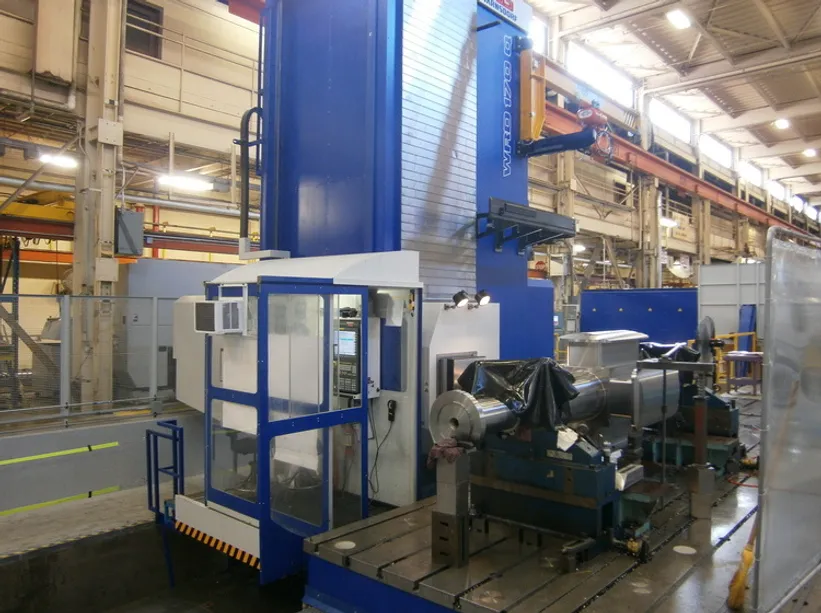

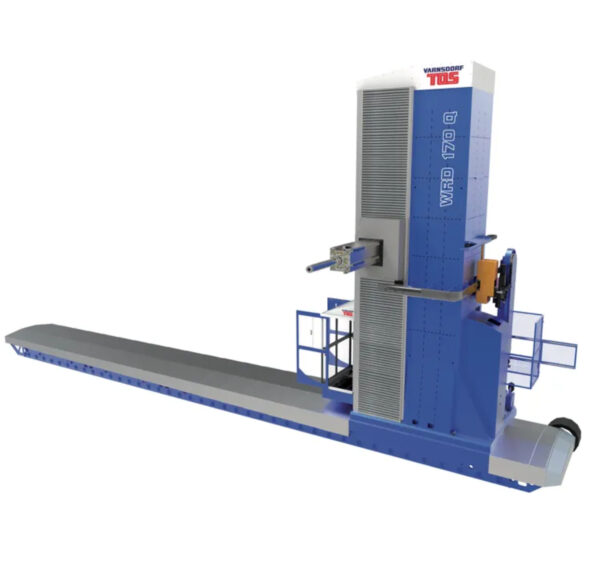

The WRD 170/200 machine is the largest and heaviest representative of floor-type machines with a linear guide in the manufacturing portfolio of TOS VARNSDORF a.s. The machines are designed for precise coordinate drilling, boring, milling, and thread cutting. WRD 170/200 is suitable for machining of box- and plate-type workpieces and complicated workpieces from cast iron, steel cast-iron, steel, and other machinable materials, mainly large as well as the largest sizes up to 150 tons. The machine can be supplemented with a series of technological devices, which greatly extend the machine’s flexibility.

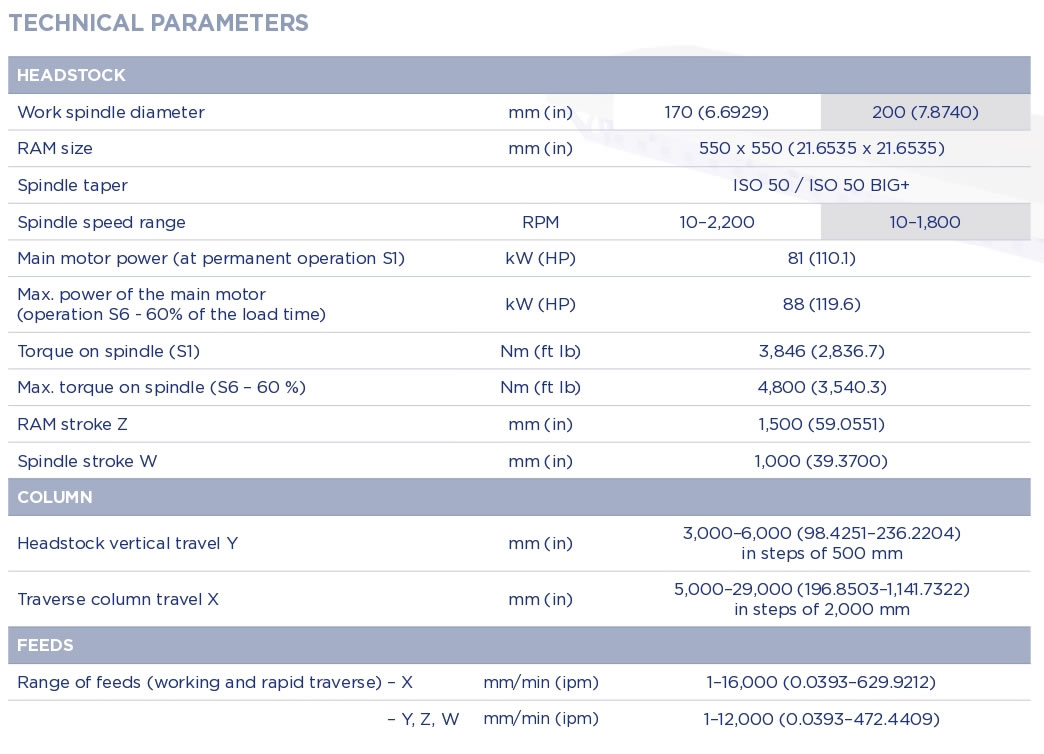

• Work Spindle Diameter: 170mm (6.7″) / 200mm (7.8″)
• Spindle Speed Range: WRD 170- 2,200 RPM / WRD 200- 1,800 RPM
• RAM Size: 550 x 550mm (21.6 x 21.6″)
• RAM Stroke Z Travel: 1,50mm (59″)
• X Travel-Column Traverse: 5,000- 29,000 Plus (196″ – 1,141″) in 2,000mm increments
• Y Travel-Headstock Vertical Travel: 3,000 – 6,000mm (118″ – 236″) in increments of 500mm
• W Travel-Spindle Stroke: 1,00mm (39.3″)
• Optional Accessories: Rotary Tables, Floor Plates, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc.
