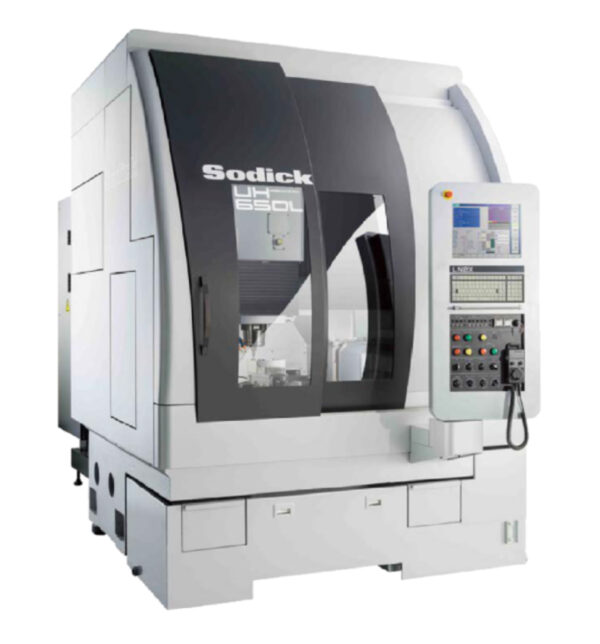

UH650L

The UX650L is designed and built for high-speed precision milling. Sodick’s flat, rigid linear motor technology provides instantaneous servo time, which maximizes cutting efficiency. Positioning and cutting accuracy are second to none on the UX650L ultra-high-speed, high-precision VMC.

X – Axis Travel:  25.59″ (650 mm)
Y – Axis Travel:   21.65″ (550 mm)
Z – Axis Travel:   11.81” (300 mm)

DOWNLOAD PDF

Features

  • Linear Motor Drives (X, Y, Z)
  • Glass Scale Feedback (X, Y, Z)
  • “MotionExpert” Simulation Software
  • Automatic LM Cross Roller Guide Lubrication System
  • Mist Oil System with Mist Collector
  • BLUM Laser Tool Length Measuring Device
  • 20 Position Automatic Tool Changer
  • 6,000 – 40,000 rpm Spindle

Options

  • Shrink Fit Tool Holder (various sizes, contact Sodick for more details)
  • Heat-Shrink Fitting Device
  • 1,500 – 60,000 rpm E25 Spindle
  • 1,500 – 50,000 rpm E25 Spindle
  • 6,000 – 40,000 rpm E25 Spindle (Grease Lubrication)
  • 45-Position Automatic Tool Changer
  • Graphite Package with Dust Collector
  • Jig Grinding Function
  • High-Speed Drilling Function
  • Indexer (Range of Indexers Available)
ADD TO QUOTE
Categories: , Tags: , , Brand:

Description

The UX650L is designed and built for high-speed precision milling. Sodick’s flat, rigid linear motor technology provides instantaneous servo time, which maximizes cutting efficiency. Positioning and cutting accuracy are second to none on the UX650L ultra-high-speed, high-precision VMC.

X – Axis Travel:  25.59″ (650 mm)
Y – Axis Travel:   21.65″ (550 mm)
Z – Axis Travel:   11.81” (300 mm)

DOWNLOAD PDF

This video highlights the accuracy of two Sodick High Speed Mills. The MC430L, which is a 16-year-old machine, as well as a UH560L which is our latest model.

The BLUM high-tech laser tool length measuring system guarantees the highest precision and reliability under the roughest conditions. The BLUM laser allows fast, precise, and automatic tool setting on the Sodick High Speed Mills.
