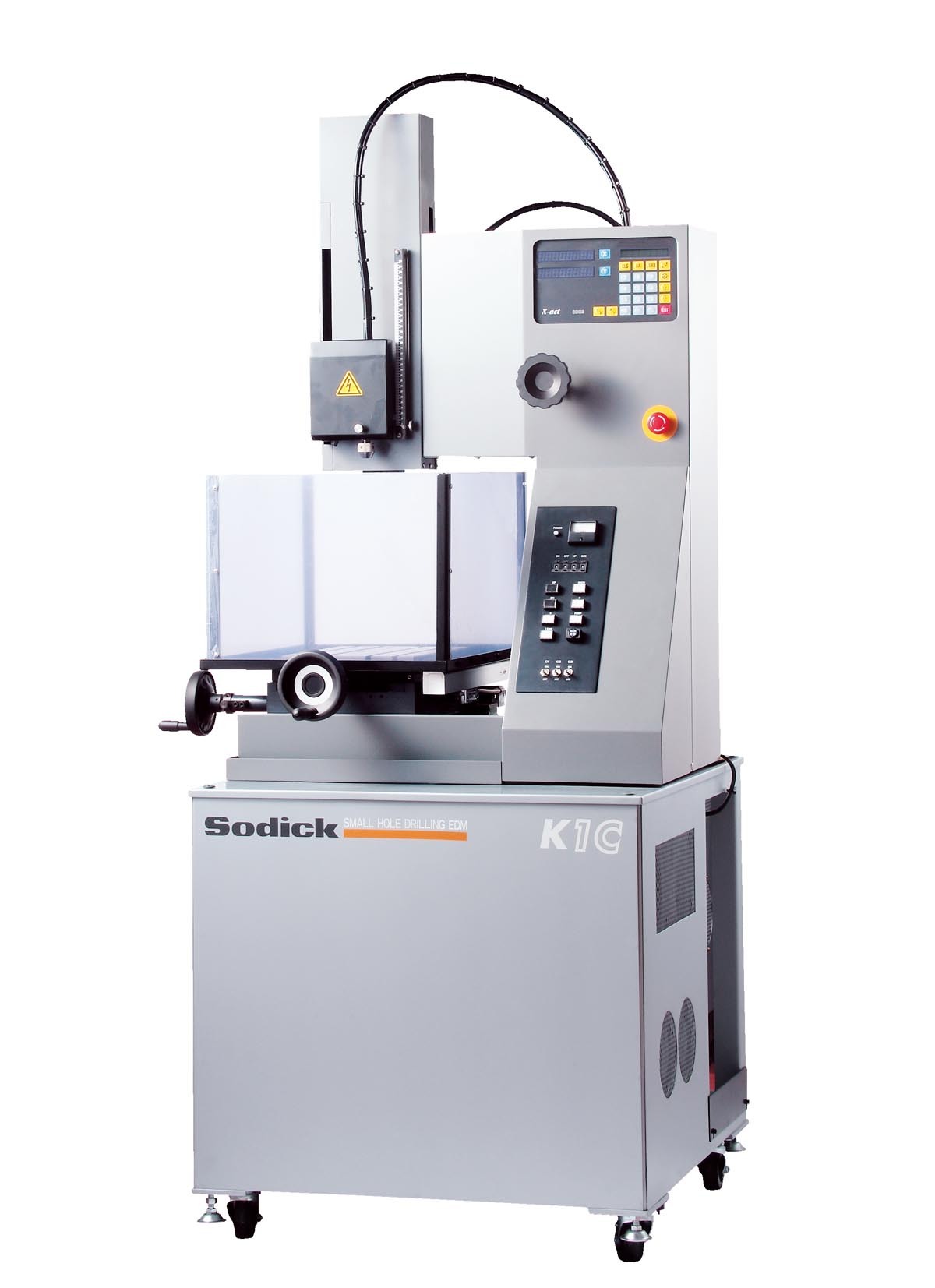

The K1C is Sodick’s dedicated, manually operated Hole Drill EDM Machine built to produce very small holes quickly and efficiently. It excels in machining tough materials that traditional drilling methods struggle with, all while maintaining low tooling costs. The machine’s capability spans a hole diameter range of 0-25 mm up to 3-0 mm. It provides a generous work envelope with an X-Y-Z axis travel of 200 x 300 x 300 mm and can handle a maximum workpiece weight of 100 kg. The K1C is engineered for improved ease of operation and comes standard with a guide set, electrode tubes, a splash guard, and workpiece fixtures. Optional features, such as a 30-amp booster for larger electrode diameters up to 6-0 mm and a high column specification, allow for greater versatility in specialized applications. The machine’s compact dimensions of 890 x 870 x 2015 mm make it an efficient addition to any precision machining facility.
