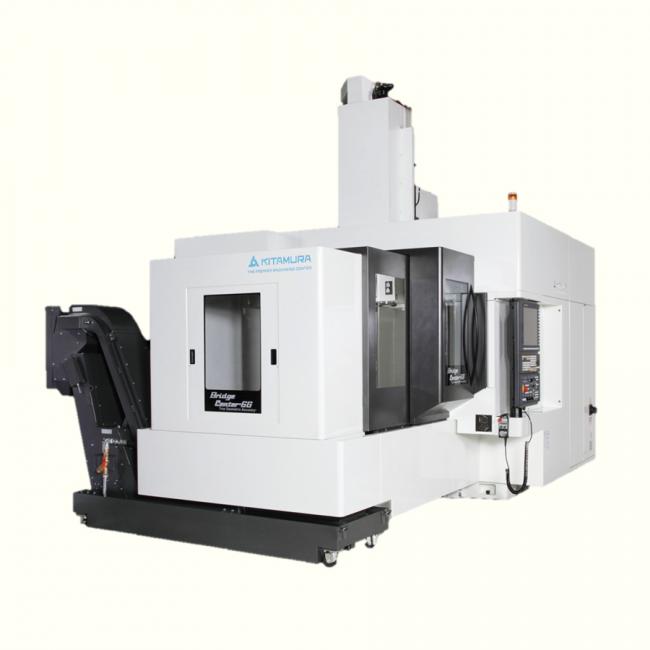

Bridgecenter-6G#40
Specifications
- Table Size:35.4” x 70.9” (900 x 1,800mm)
- Travel (X, Y, Z):60.2” x 43.1” x 28.0”(1,530 x 1,095 x 710mm)
- Spindle Taper:NST No. 40
- Spindle Speed:20~20,000rpm Gear Drive, 4-Step
- Tool Storage Capacity:40 Pcs. (60, 80 Opt.)
- Tool Change Time (T-T/C-C):6.6 Sec. /12 Sec.
- Rapid Feed (X, Y, Z):945ipm (24m/min)
- Power Requirement:35KVA
Features
- Ideal for parts requiring heavier cutting loads and higher levels of precision and accuracy. Excellent for Die/Mold applications.
- Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #40, high speed, heavy duty 20,000rpm, 4-Step Geared, Dual Contact Spindle
- Double column design provides expansive work envelope and superior rigidity
- Linear scale feedback in X, Y, Z axes
- Space saving footprint takes up only 166 total square feet
- 6,600Lb table capacity
Bridgecenter-6G#50
Specifications
- Table Size:35.4” x 70.9” (900 x 1,800mm)
- Travel (X, Y, Z):60.2” x 43.1” x 28.0”(1,530 x 1,095 x 710mm)
- Spindle Taper:NST No. 50
- Spindle Speed:35~12,000rpm Gear Drive, 4-Step
- Tool Storage Capacity:40 Pcs. (60, 80 Opt.)
- Tool Change Time (T-T/C-C):6.6 Sec. /12 Sec.
- Rapid Feed (X, Y, Z):945ipm (24m/min)
- Power Requirement:45KVA
Features
- Ideal for parts requiring heavier cutting loads and parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
- Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #50, High Torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
- Double column design provides expansive work envelope and superior rigidity
- Linear scale feedback in X, Y, Z axes
- Space saving footprint takes up only 166 total square feet
- 6,600Lb table capacity
Bridgecenter-8G#50
Specifications
- Table Size:35.4” x 98.4” (900 x 2,500mm)
- Travel (X, Y, Z):80.0” x 43.1” x 28.0”(3,032 x 1,095 x 710mm)
- Spindle Taper:NST No. 50
- Spindle Speed:35~12,000rpm Gear Drive, 4-Step
- Tool Storage Capacity:40 Pcs. (60, 80 Opt.)
- Tool Change Time (T-T/C-C):6.6 Sec. /12 Sec.
- Rapid Feed (X, Y, Z):945ipm (24m/min)
- Power Requirement:45KVA
Features
- Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
- Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
- Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines
- Linear scale feedback in X, Y, Z axes
- Space saving and compact, the Bridgecenter-8G measures only 137.6" x 230.9" (3,494 x 5,866mm) on your floor!
- 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces
Bridgecenter-10G
Specifications
- Table Size:53.9” x 118.1” (1,370 x 3,000mm)
- Travel (X, Y, Z):100.0” x 63.6” x 31.5”(2,540 x 1,615 x 800mm)
- Spindle Taper:NST No. 50
- Spindle Speed:35~12,000rpm Gear Drive, 4-Step
- Tool Storage Capacity:40 Pcs. (60, 80 Opt.)
- Tool Change Time (T-T/C-C):6.6 Sec. /14 Sec.
- Rapid Feed (X, Y, Z):945ipm (24m/min)
- Power Requirement:50KVA
Features
- Well suited for large part machining requiring increased rigidity and higher levels of precision and accuracy. Perfect for roughing and finishing of large cavities and cores in the die/mold industry.
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
- Patented double column bridge type design provides expansive work envelope and superior rigidity
- Linear scale feedback in X, Y, Z axes
- Ultra high speed and high precision contour control for smoother and faster machining. 2,800 block/sec. processing speeds
- 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
Bridgecenter-12G
Specifications
- Table Size:53.9” x 137.8” (1,370 x 3,500mm)
- Travel (X, Y, Z):120.0” x 63.6” x 31.5”(3,050 x 1,615 x 800mm)
- Spindle Taper:NST No. 50
- Spindle Speed:35~12,000rpm Gear Drive, 4-Step
- Tool Storage Capacity:40 Pcs. (60, 80 Opt.)
- Tool Change Time (T-T/C-C):6.6 Sec. /15 Sec.
- Rapid Feed (X, Y, Z):945ipm (24m/min)
- Power Requirement:50KVA
Features
- 120" extended X-Axis stroke offers flexibility in large part processing that requires increased levels of rigidity and higher levels of precision and accuracy.
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
- Patented double column bridge type design provides expansive work envelope and superior rigidity
- Linear scale feedback in X, Y, Z axes
- A unique optional 5-axis articulating head can be incorporated for multi angle, complex part machining made easy
- 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
Jigcenter-5 Vertical Jig Boring Machine
Specifications
- Table Size:30.7” x 47.2” (780 x 1,200mm)
- Travel (X, Y, Z):32” x 29.3” x 19.7”(815 x 745 x 500mm)
- Spindle Taper:NST No. 40
- Spindle Speed:20~20,000rpm – Geared Spindle
- Tool Storage Capacity:50 Pcs. (100 Opt.)
- Tool Change Time(T-T/C-C):2.5 Sec. /5.0 Sec.
- Rapid Feed (X, Y, Z):984pm (25m/min)
- Power Requirement:35KVA
Features
- Ideal for ultra-high precision simultaneous 3-axis machining.
- Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
- Sliding overhead door allows for easy workpiece loading/unloading
- Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
- Standard 220psi Coolant thru the spindle and Double Decker style conveyor and filtration system
- Linear scale feedback on all axes
- Highest grade meehanite cast iron construction with solid box ways
