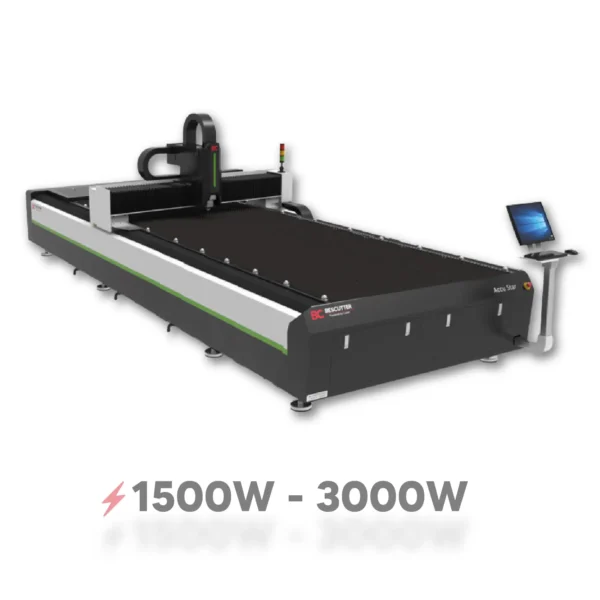

The ACCU STAR 5′ × 20′ Fiber Laser Metal Sheet Cutting Machine is engineered to meet the demands of industrial-grade metal fabrication by combining power, precision, and a large work envelope. With fiber laser power ranging from 1500 W up to 3000 W, the machine can efficiently process a variety of metals such as mild steel, stainless steel, aluminum, brass, and more, making it a versatile choice for many manufacturing environments.

The generous working area — 60″ × 240″ (approximately 1525 mm × 6096 mm) — accommodates large metal sheets or multiple parts in a single cut. The machine’s structural integrity is ensured by a high-rigidity aviation-grade aluminum gantry, welded and treated for maximum stiffness, paired with a servo-driven rack and pinion motion system to deliver smooth, accurate movements across the full cutting bed.

Cutting performance is supported by a RayTools auto-focus laser head, which automatically adjusts focus via a servo motor — eliminating the need for manual refocusing and ensuring consistent cut quality across varying material thicknesses. The machine’s positioning accuracy is rated at ±0.03 mm, with repeated positioning accuracy around ±0.02 mm, giving the precision required for industrial metalwork.

Speed is another strong point: the ACCU STAR 5′ × 20′ can reach cutting speeds up to 2362 inches per minute (about 60 m/min), with rapid axis motion to support high-throughput jobs. To ensure long-term operation and minimal maintenance, the system includes an optimized automatic lubrication system and uses high-quality components such as precision rack and pinion rails, reliable servo motors, and a stable welded frame.

This machine is an excellent choice for metal fabricators, sheet metal shops, and manufacturers who need a robust, high-power, large-bed laser cutting solution — whether for large single-piece work, high-volume batch processing, or complex nested cutting jobs.
