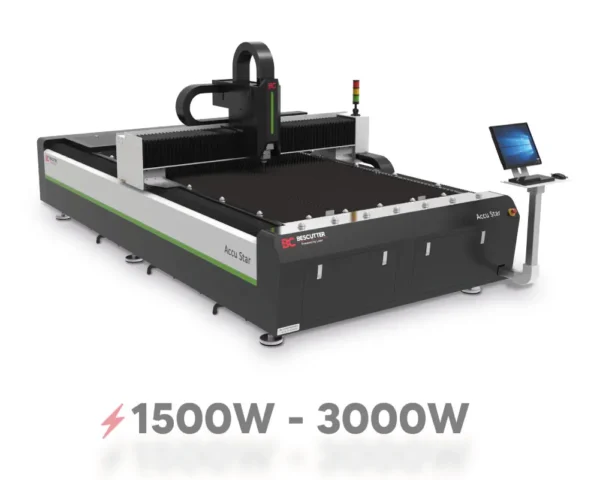

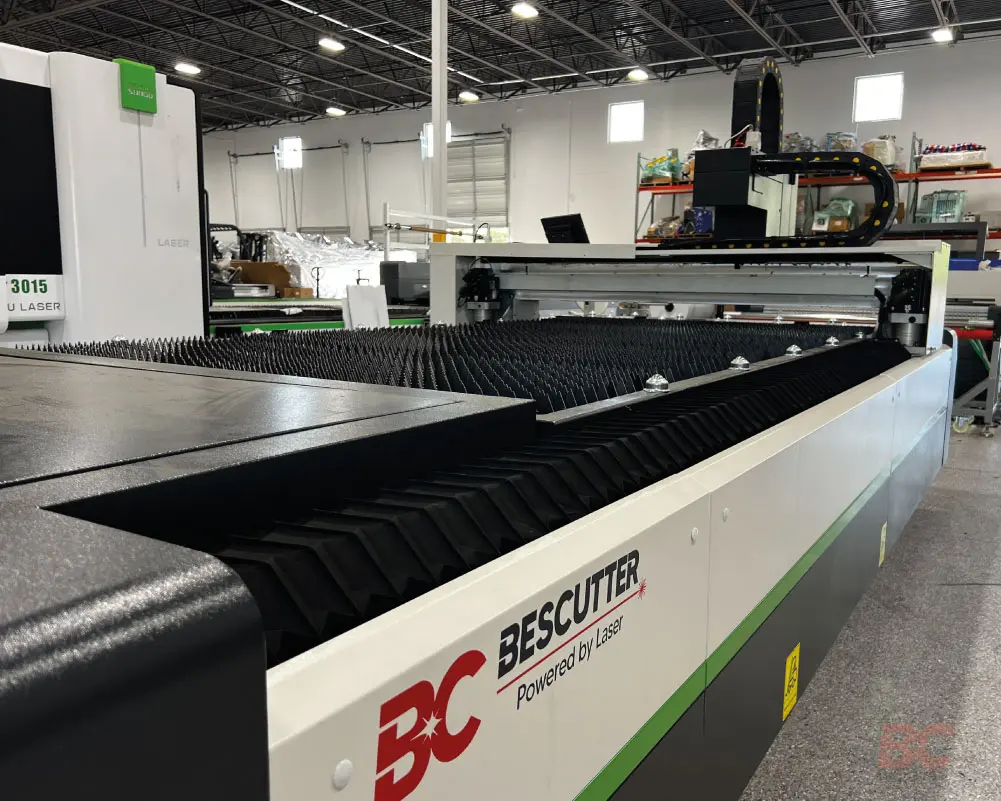

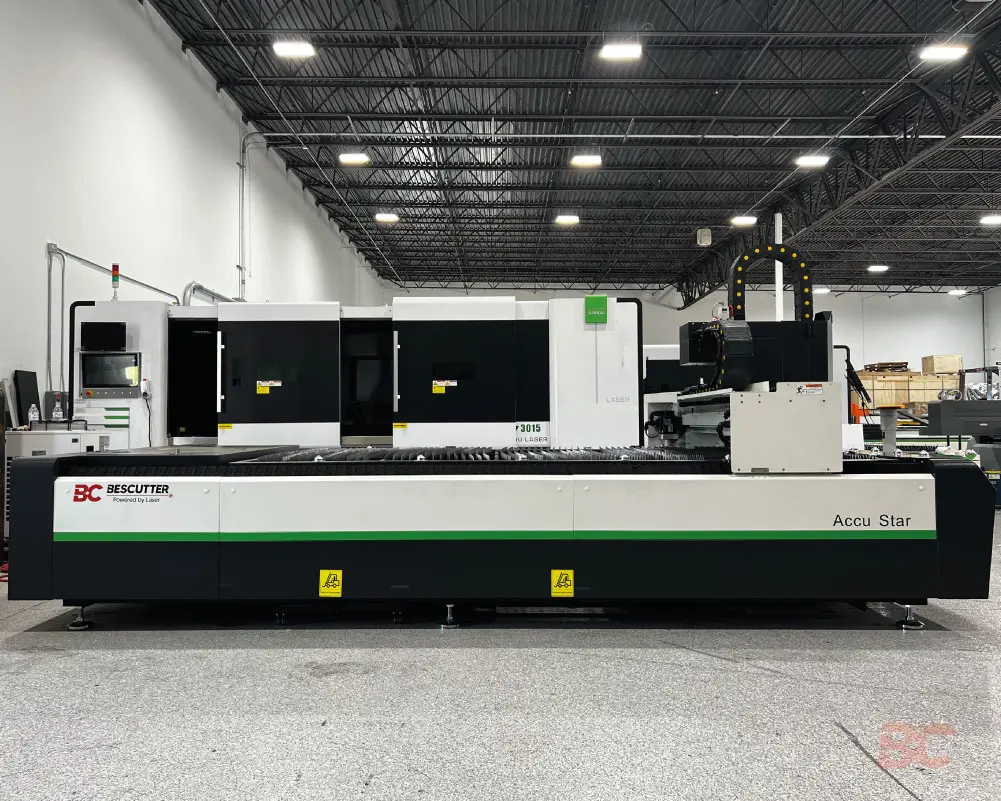

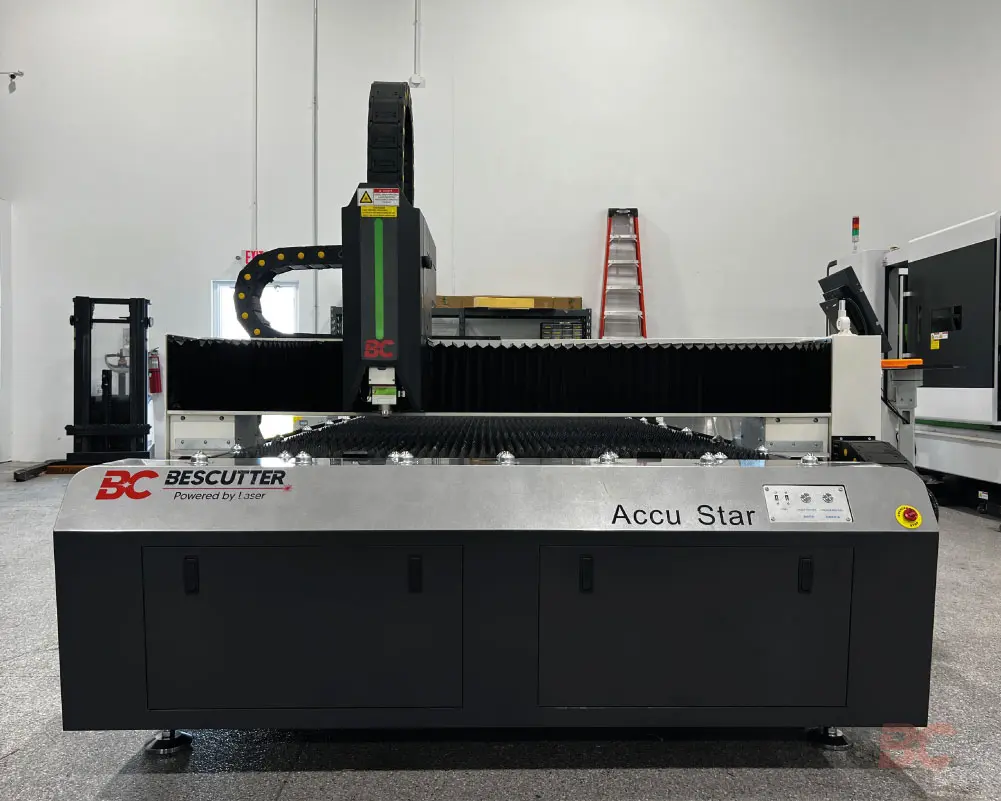

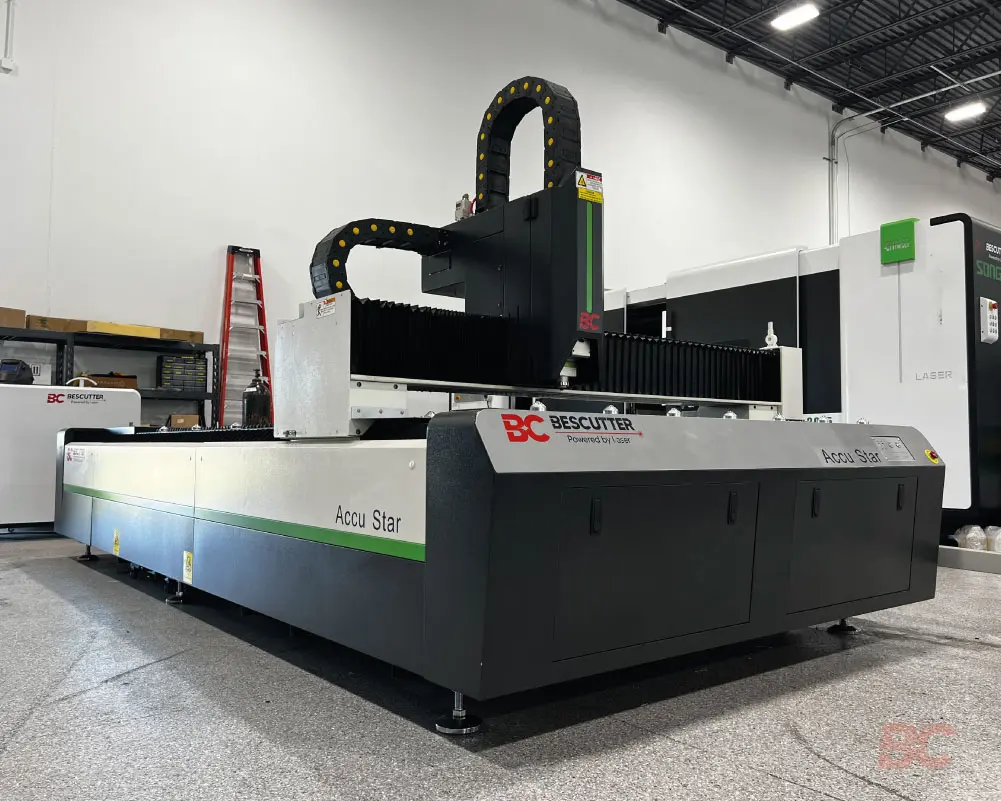

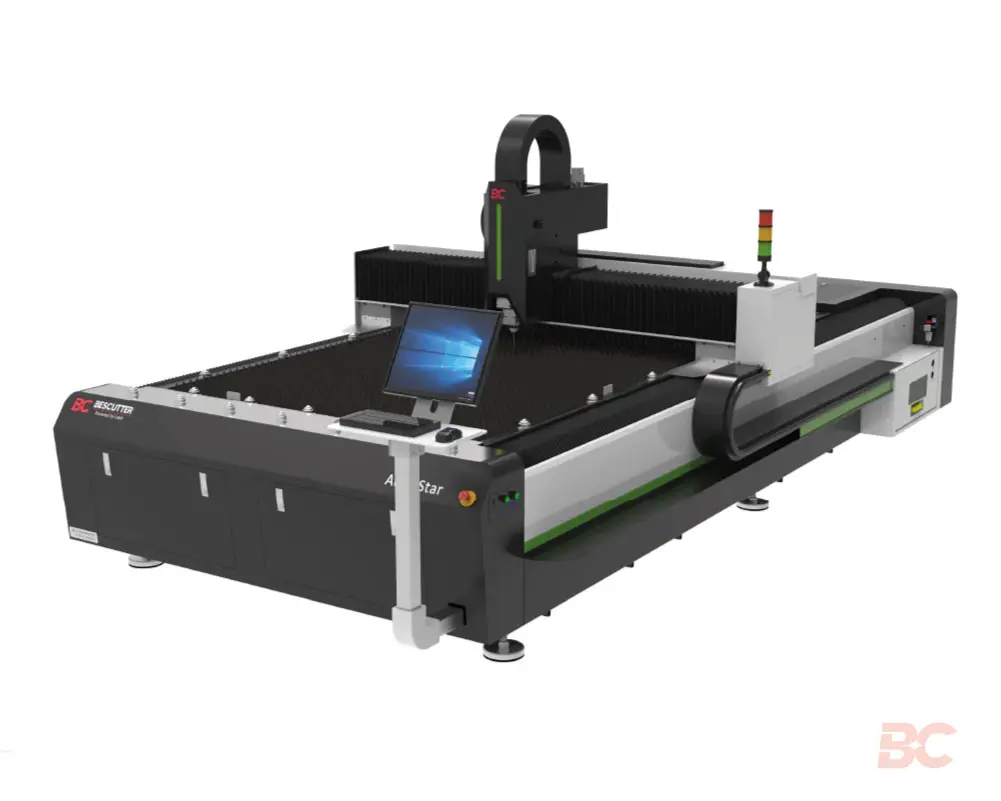

The ACCU STAR 5′ × 10′ fiber laser cutting machine offers a versatile, efficient solution for metal sheet cutting, blending industrial-level performance with a space-saving design well suited for modern fabrication shops. Its standard working area is 5′ × 10′ (1,525 mm × 3,050 mm), with an optional extended working length available for larger sheets.

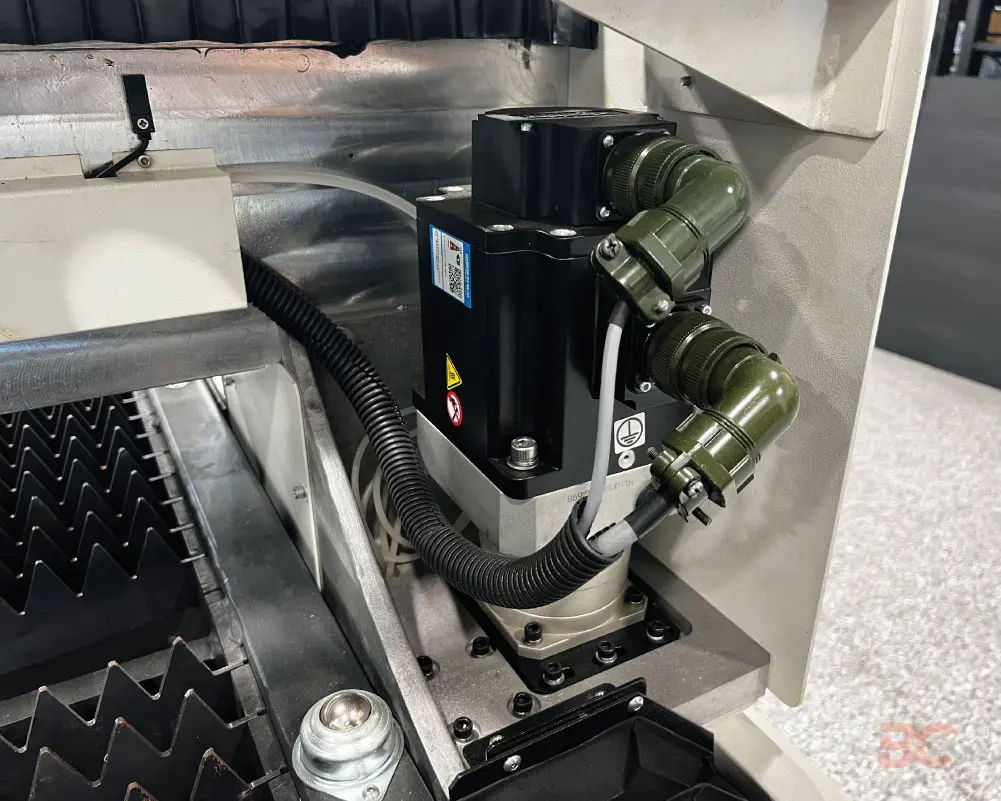

At its core is a high-quality IPG fiber laser resonator (with power options from 1500 W up to 3000 W), paired with a RayTools auto-focus laser head, ensuring sharp, clean cuts and consistent cut quality across the entire work area. The system uses a dual-servo motor gantry with precision rack and pinion guide rails, delivering stable movement, high positioning accuracy (± 0.05 mm per meter), and repeat positioning accuracy (± 0.02 mm per meter) for reliable, repeatable results.

With a max cutting speed of around 60 m/min (2362 in/min) and a maximum acceleration of 0.8 G, ACCU STAR enables fast sheet processing while maintaining high precision.  Integrated control via the CypCut BCS 100 software supports CAD and DXF file import, making workflow integration straightforward and efficient.

The machine frame features a high-rigidity aviation-aluminum gantry and a heavy-duty steel chassis that has undergone secondary annealed welding, ensuring structural stability and long-term durability even under heavy use. Cooling is handled by a water-chiller system, and guiding components are from reputable suppliers — making the ACCU STAR a dependable workhorse for consistent, high-quality metal cutting jobs.

Whether you are cutting mild steel, stainless steel, aluminum, brass, or other alloys, ACCU STAR delivers precision, efficiency, and flexibility — ideal for job shops, fabricators, and production environments where throughput and cut quality matter.
