Description
- Standard Spindle Speeds 10,000 rpm
- Optional Spindle Speeds 12,000 / 15,000 / 20,000 / 24,000 / 30,000 rpm
( Built in Spindle ) - Rigid Tapping 4,000 rpm
- Spindle Nose Taper BBT30
- 3 Axes Rapid Traverse X, Y, Z: 48 / 48 / 60 m/min

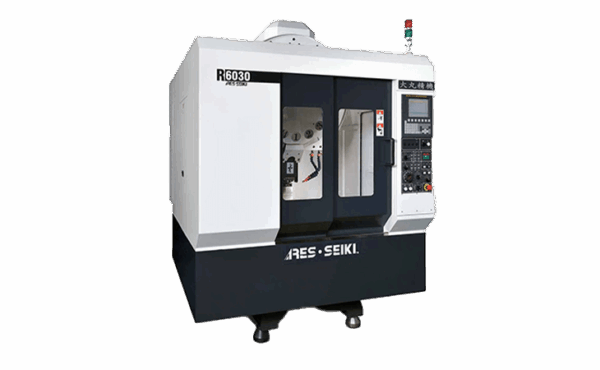

R-6030R-6030
- Standard Spindle Speeds 10,000 rpm
- Optional Spindle Speeds 12,000 / 15,000 / 20,000 / 24,000 / 30,000 rpm
( Built in Spindle ) - Rigid Tapping 4,000 rpm
- Spindle Nose Taper BBT30
- 3 Axes Rapid Traverse X, Y, Z: 48 / 48 / 60 m/min
Machine Technical Specifications
-
Standard Spindle Speeds
10,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 / 20,000 / 24,000 / 30,000 rpm
( Built in Spindle ) -
Rigid Tapping
4,000 rpm
-
Spindle Nose Taper
BBT30
-
3 Axes Rapid Traverse X, Y, Z 48 / 48 / 60 m/min
-
High Speed Arm-Type ATC time T-T
M 1.7 sec / F 2.6 sec -
Fully Enclosed Heat-Isolated Electric Cabinet
-
Directly Coupled Spindle Drive System
