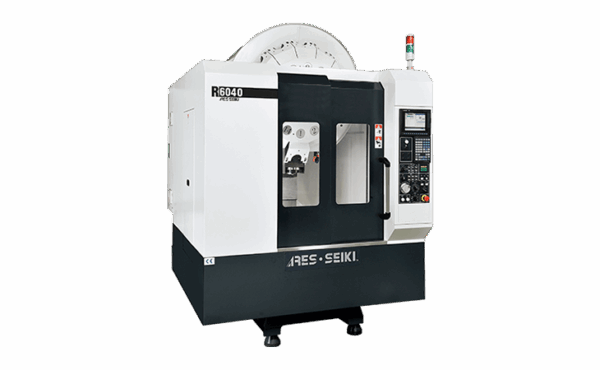

The R-6040R-6040 3-Axis Vertical Machining Center delivers a balanced combination of power, speed and flexibility for a wide range of machining jobs. The machine features a standard spindle speed of 8,000 rpm, with optional upgrades to 12,000 or 15,000 rpm, granting users control over cutting speed depending on the material and finish requirements. The BT40 spindle taper and directly-coupled spindle drive system ensure rigid, reliable spindle performance for demanding milling or drilling tasks.

With travel ranges of 600 mm (X) × 400 mm (Y) × 400 mm (Z) and a table size of 700 × 410 mm with a maximum table load of 250 kg, the R-6040R-6040 offers substantial working volume while retaining compact floor space. The table-to-spindle nose distance ranges from 140 to 540 mm, allowing versatility for different workpiece heights.

Tool handling is efficient thanks to a 14-station automatic tool changer (ATC) that supports tools up to 250 mm in length and 3 kg in weight. The ATC features fast tool change times (M 2.2 seconds / F 3.2 seconds), minimizing downtime during complex machining sequences.

The robust drive motors (spindle motor 7.5 / 5.5 kW for Mitsubishi or FANUC, or 7.0 kW for Siemens) combined with a fully enclosed, heat-isolated electric cabinet, help maintain stable performance even under continuous production loads.

Overall, the R-6040R-6040 is engineered to deliver reliable, high-precision machining, with the flexibility to handle varied workpieces—from automotive components to medical parts to electronics housings—making it a strong choice for facilities requiring both adaptability and consistency.
