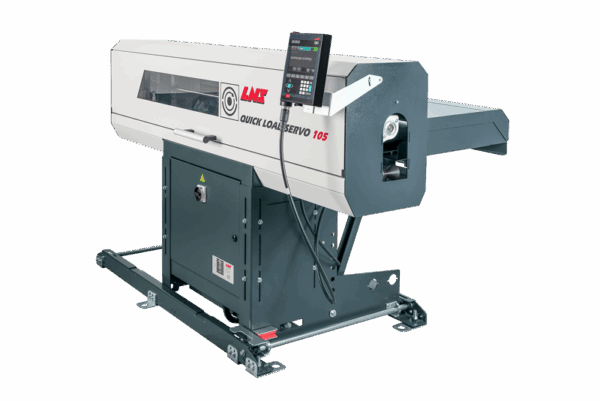

The Quick Load Servo 105 automatic bar feeder brings together compact design, versatility, and high productivity to simplify bar-stock handling on lathes. It accommodates bar diameters from 6 to 105 mm (1/4” to 4-1/8”) and bar lengths from 300 to 1600 mm (11” to 63”, limited by spindle length), making it suitable for a wide range of turning applications.

At its core, Quick Load Servo 105 uses servo-motor-driven positioning for precise and consistent bar feeding, ensuring reliable performance even in unmanned or lights-out operations.  The system features a heavy-duty 650 mm (approx. 26 inch) magazine capable of staging substantial bar stock (up to 1430 pounds) — perfect for extended production runs without manual intervention.

Setups and changeovers are engineered for speed and ease. The integrated touchscreen HMI guides the operator through diameter, shape, and part-length settings, and a complete diameter changeover can be done in 15 seconds or less (partial) or within 1 minute for full reconfiguration, minimizing downtime between jobs. The magazine tray can be loaded from the front or rear to optimize floor space, and includes a clear window for monitoring remaining material.

The Quick Load Servo 105 also supports a variety of bar shapes — round, hex, square, and even odd-shaped stock — giving it flexibility across different workpieces. For applications requiring heavy stock, there is an optional “LIFT” magazine system that enables loading by forklift or crane while preserving full retraction and feeding functions.

Designed for reliability and long production cycles, this bar feeder uses high-quality components, including a servo drive with an absolute encoder, ensuring consistent performance across shifts and even during unattended operation. Whether you need quick diameter changes, long unattended runs, or support for mixed bar shapes, the Quick Load Servo 105 delivers a robust, flexible, and user-friendly solution to automate bar feeding and boost throughput.
