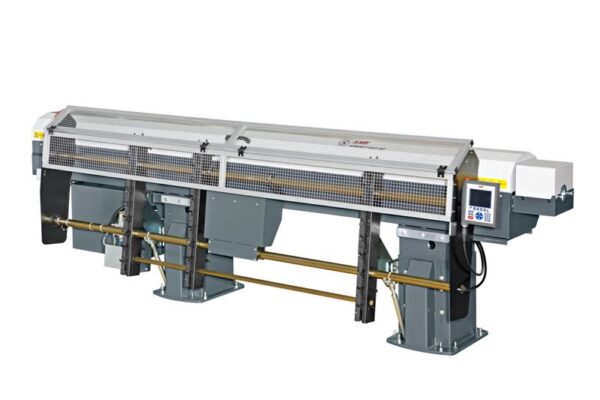

The Sprint 565 S2+ automatic bar feeder is engineered to offer maximum stability and consistent performance even under demanding production environments. It supports bar stock diameters from 5 to 65 mm, and bar lengths of 2200, 3200, 3800, or 4200 mm, depending on configuration. With reinforced feet and a heavy‑duty steel structure, the Sprint 565 S2+ is designed to minimize vibration and ensure stable feeding — a critical factor for achieving high‑precision turning operations.
Loading is handled via a side chain‑elevator rack with loading hooks that support automatic loading of multiple bars: up to 11 bars of Ø 52 mm or 9 bars of Ø 65 mm. This capacity gives the system long autonomy between reloads, making it well-suited for long batch runs. The system also supports a remnant length from 110 mm to 450 mm maximum.
Control and setup are simplified thanks to a colour touchscreen remote control with a built‑in parts library capable of storing up to 500 parts and their corresponding feeder settings — including bar diameter, feed‑out length, material data, and end‑of‑bar position. When the bar diameter is entered, the system automatically adjusts feed force, feed speed, and other parameters for optimal feeding performance.
Changing over between different bar diameters is quick and tool‑free: a partial changeover (within the same guiding channel) takes 2 minutes or less, while a full changeover (guiding elements, pusher, collet, etc.) can be done in around 8 to 10 minutes.
The internal guiding system uses hydrostatic bearings and is driven by a servo‑motor with belt drive, ensuring smooth, vibration‑free bar feeding even at high speeds. The feeder also offers optional configurations such as extended capacity racks and adaptable loading sides (left/right or front/rear), allowing flexibility depending on workshop layout.
Overall, the Sprint 565 S2+ combines wide diameter and length capacity, heavy‑duty build for vibration control, high autonomy, user‑friendly control, and quick changeovers, making it an excellent choice for manufacturers needing reliable, high-throughput bar feeding for medium to large batch production.
The Sprint 565 S2+ from LNS is a heavy‑duty automatic bar feeder built for fixed headstock lathes, capable of handling bar stock from 5 to 65 mm in diameter and bar lengths up to 4200 mm — delivering high stability, reduced vibration, and reliable feeding for medium to large production runs.
