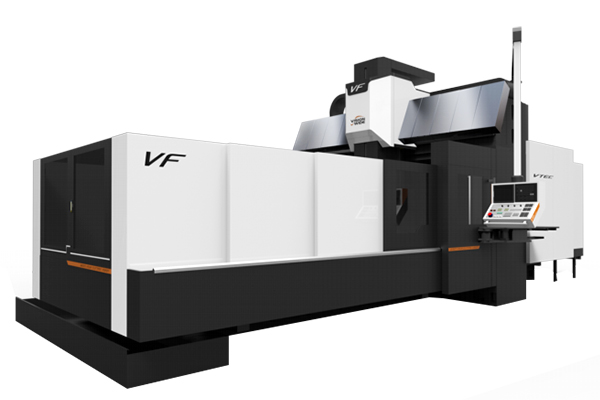

The VISION WIDE VF-3000 Double Column Milling Machining Center is a classic, heavy-duty, bridge-type machine designed for stable and precise production on large components. This model achieves extraordinary heavy cutting ability through its construction, which features Harden Box Ways on all three axes, meticulously hand-scrapped to ensure durability and accuracy under high loads.

Key Specifications and Structural Features

The VF-3000 provides a large work envelope and robust performance characteristics:

• Harden Box Ways: All axes are supported by HRC 50 hardened and hand-scrapped box ways, providing superior rigidity, damping capacity, and precise feeding performance for heavy cuts.
• Sloping Beam Design: Features a unique sloping beam that strategically positions the Z-axis center close to the beam to minimize unbalanced cutting moments and maximize structural integrity.
• Heavy Duty Construction: Built with Meehanite grade casting iron and a strongly V-shaped reinforced bed to stably carry workpieces up to 11,000 kg.
• Versatility: Equipped with a standard 4,000 RPM 2-step gear spindle and 40-tool magazine, this model is prepared for auto head attachments to perform efficient 5-face machining of mold surfaces.
