The LB521 Double Column Bridge Machine is part of the LB Series, meticulously designed for heavy cutting applications that demand superior accuracy and high material removal rates on extremely large components across ferrous, non-ferrous, and high-temperature alloys.

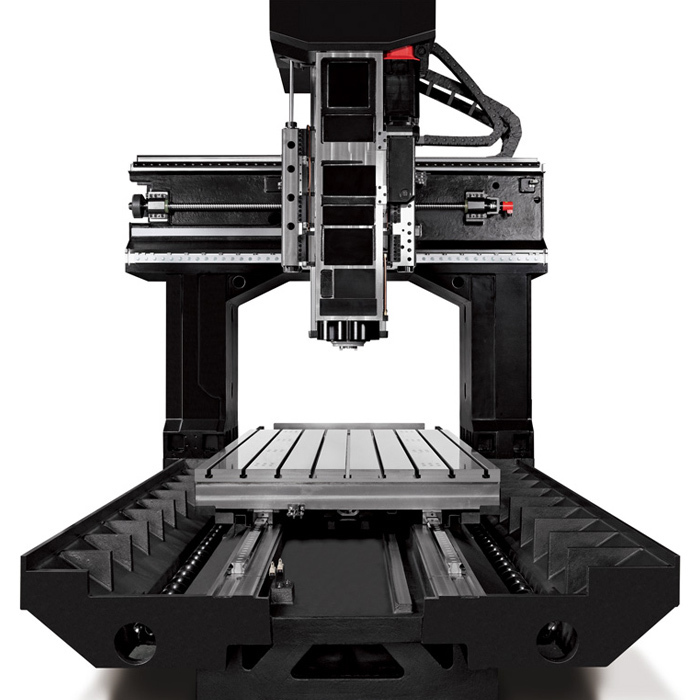

The machine’s foundation is a massive Meehanite cast iron base, ensuring maximum stability and rigidity during the heaviest cuts. It features an expansive work area with a 196-8 inch x 78-7 inch table capable of handling workpieces up to a maximum load of 39,600 lbs (18,000 kg). The travels are generous, offering 199-2 inches of X-axis travel (5,060 mm) and 84-6 inches of Y-axis travel (2,150 mm), with a substantial distance of 90-5 inches between columns. The headstock employs a hydraulic counterbalance system for smooth, precise movement.

At its core, the LB521 utilizes a reliable CAT50 geared-head spindle operating at 6,000 RPM. All axes maintain high-speed efficiency with a rapid feed rate of 787 inches per minute (20 m/min). Precision is guaranteed with a linear position accuracy of plus-minus 0-0006 inches (0-015 mm) over the full travel and a linear repeatability of plus-minus 0-0001 inches (0-003 mm). For complex work, the optional -YM model allows for five-face machining capabilities and features automatic tool changes in both vertical and horizontal orientations, accommodating optional headstock choices like 30-degree, 90-degree, extension, and manual universal heads. The standard Z-axis travel is 31-5 inches, but can be optionally extended up to 55-1 inches (1,400 mm).
