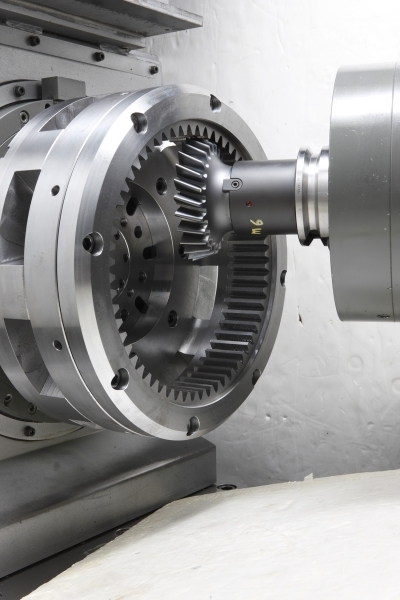

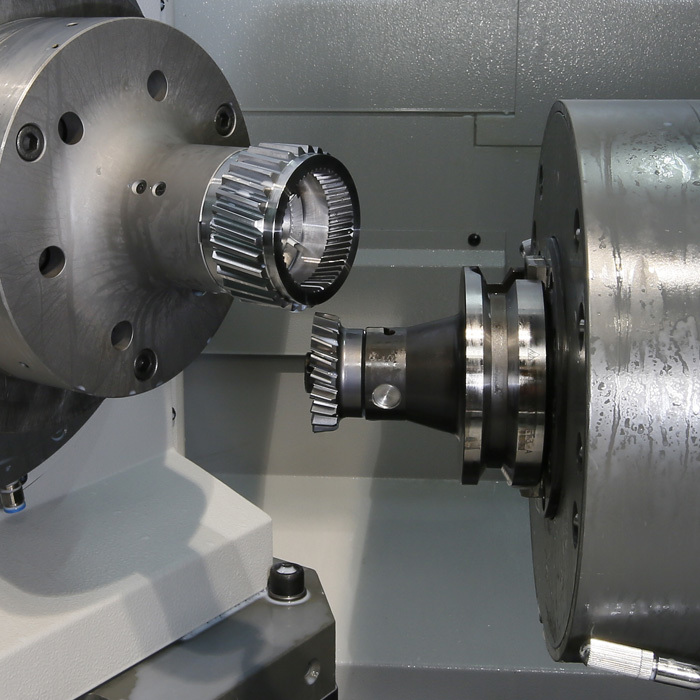

The JTEKT GS300H is a revolutionary Multitasking Horizontal Machining Center that sets a new standard for gear manufacturing by being the first of its kind to integrate a dedicated gear skiving function onto a general-purpose horizontal platform. This innovative design allows for the integrated production of complex gear parts by combining lathe, gear skiving, and machining center capabilities into a single machine. The result is significantly improved productivity and flexible machining, as the GS300H can perform continuous machining on the shop floor, dramatically reducing the overall equipment and cutting tools required.

Built for mass production, the GS300H delivers industry-leading high precision optimized for speed, rigidity, and reliability. Key specifications include a generous 31-5 inch (800 mm) maximum workpiece swing and a large travel range with X-axis travel of 28-7 inches (730 mm), Y-axis travel of 25-6 inches (650 mm), and Z-axis travel of 33-5 inches (850 mm). The B-axis offers a 270-degree rotating range with 0.001-degree precision. The machine features a powerful BBT No-50 Spindle Nose with a 6,000 min-1 speed and a rapid feed rate of 2,362 ipm (60 m-min), ensuring fast and efficient part processing across various materials, including ferrous, non-ferrous, and high-temp alloys.
