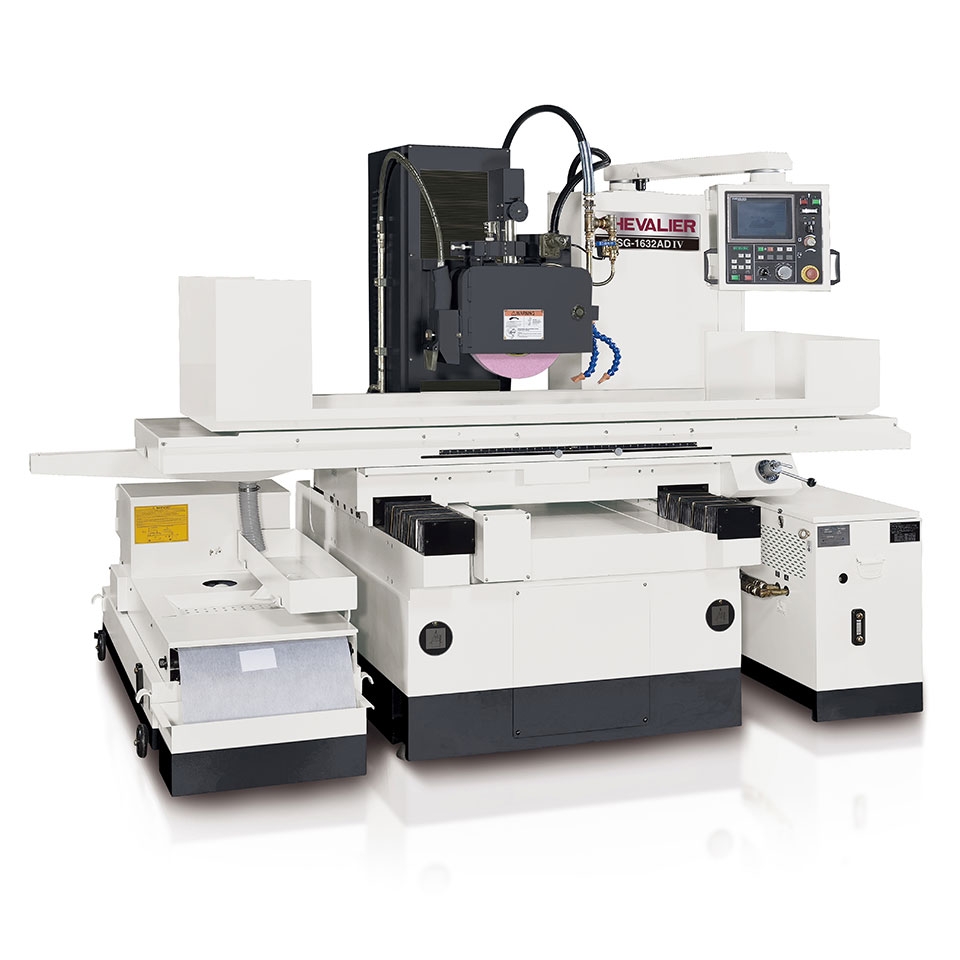

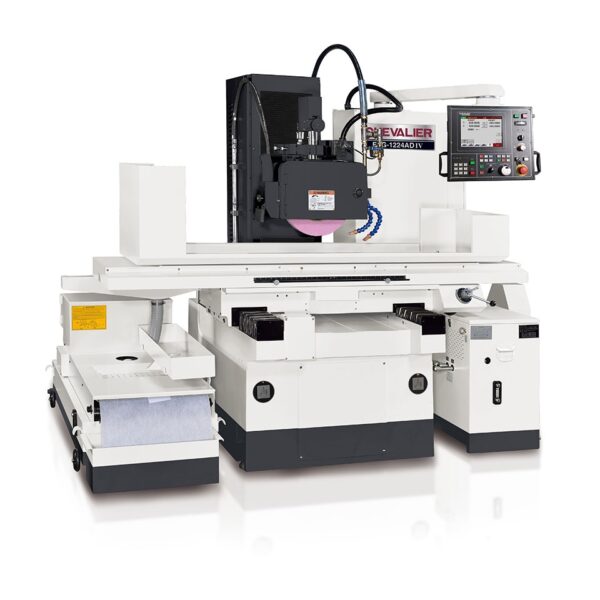

The FSG-1224 / 16ADIV Series represents Chevalier’s line of Fully Automatic Precision Surface Grinders, built for shops demanding the highest level of accuracy and automated operation. The core of the machine is the PLC touch screen control with a 10.4-inch TFT high-resolution 65536 color display, which provides an easy-to-use interface for setting up and executing complex grinding cycles. The system features a 3-axis fully automatic grinding function, supporting both surface and plunge grinding applications.

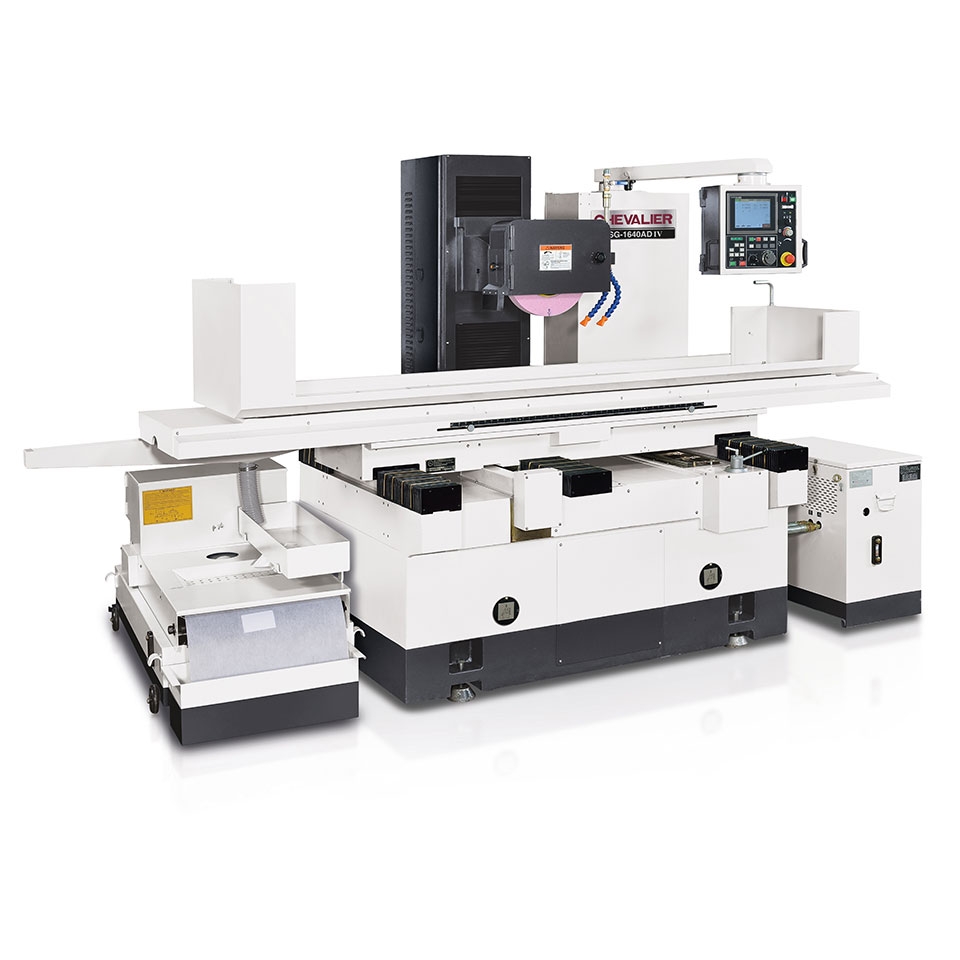

Precision is guaranteed by the high-precision cartridge-type spindle, which is robustly equipped with four Class 7 angular contact ball bearings to ensure excellent stability and rigidity, making it suitable for heavy-duty grinding. The grinders include automation features such as the ability to preset the number of free passes between down-feeds to achieve better accuracy based on the workpiece material, and automated procedures like the wheel head raising to end, start, and reference positions after cycle completion. Models like the FSG-1224ADIV offer a maximum grinding area of 24.0 inches by 12.0 inches, while larger units like the FSG-1640ADIV can handle lengths up to 40 inches, accommodating a wide range of precision surface work.
