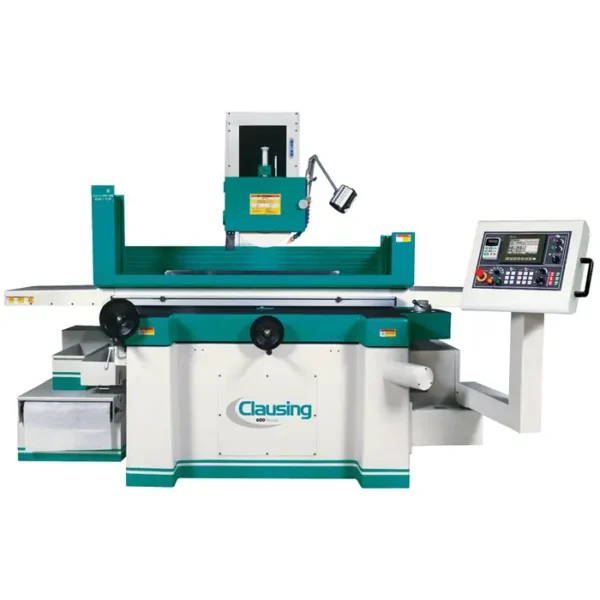

The machine is engineered for heavy-duty operation, built from high-grade cast iron with heavy walls and reinforced honeycomb ribbing to ensure excellent rigidity and dampening. Control features include a Delta PLC with a 72-inch color touch screen, which uses a conversational program language for easy setup and offers Programmable Up Down Head Positioning.

Power comes from a 5 HP spindle drive motor running at 1750 RPM. The large-diameter spindle assembly utilizes four preloaded precision angular contact ball bearings and one NU-type roller bearing for durable and highly accurate grinding performance. Motion is automated through hydraulic-driven longitudinal table movement with Pre-settable speed control and a DC motorized servo crossfeed with ballscrew.

For precision and longevity, the table rests on precision hand-scraped V and Flat ways coated with Turcite B, which are maintained by an Auto Lubrication System. The grinder offers a precise Vertical Automatic Infeed range from 00005 to 0025 inches and a maximum height of 23 inches from the table surface to the spindle centerline. Standard features include a Micro Down Feed system, a Chuck Controller with De-Mag, and a Built-in Proximity Switch. The machine operates on 230 or 460 volts, 3 phase power.
