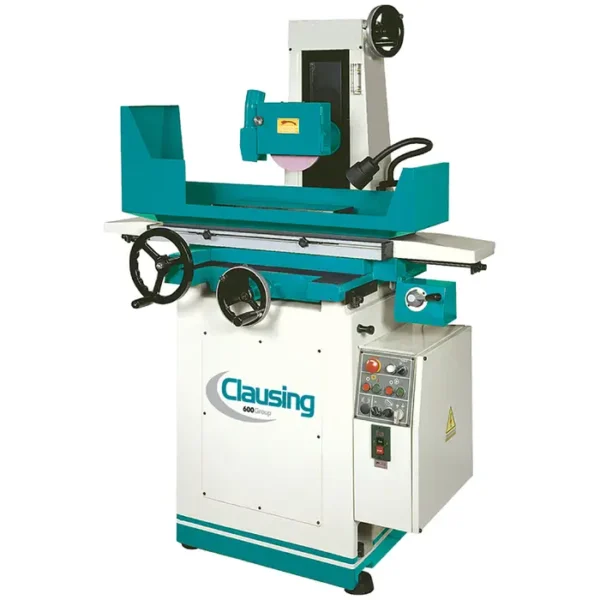

This precision grinder features a hydraulic-driven longitudinal movement and a motorized cross-feed. The machine’s table, saddle, and base are constructed from high-quality cast iron with heavy walls and reinforced ribs. It includes a deep base honeycomb ribbing that is highly suitable for heavy-duty grinding, ensuring enhanced accuracy, rigidity, and stability through its enlarged column and base.

The spindle is a cartridge-type design, backed by two preloaded angular contact ball bearings and an NN-type roller bearing, powered by a V3-class motor that runs at 1750 RPM for superior grinding performance. For minimal wear and greater accuracy, the machine is equipped with Turcite-B-coated V and Flat ways and an Auto-Lubrication System.

The CSG2A1224 offers a maximum distance of 23 inches from the spindle to the table. The longitudinal travel is 2874 inches. The machine’s standard features include a Grinding Wheel, Wheel Extraction Screw and Nut, Wheel Flange, a Balancing Stand with Arbor, Leveling Screws with Blocks, a Cross-Feed Ball Screw, and a Splash Guard. It is compatible with 230 or 460 volts, 3-phase.
