Constructed of high-grade cast iron with heavy walls and reinforced honeycomb ribbing, the machine provides superior rigidity and dampening for durable, heavy-duty operation. The grinder is powered by a robust 75 HP motor that drives a large-diameter spindle at 1750 RPM, ensuring highly accurate grinding performance. The spindle is supported by four preloaded precision angular contact ball bearings and one NU type roller bearing.
The machine features hydraulic-driven longitudinal table movement with a Pre-settable speed control and an AC motorized servo crossfeed with ballscrew. A Rapid Up-Down Head Positioning Motor is included for fast vertical positioning of the grinding wheel. To guarantee precision and wear resistance, the saddle rests on hand-scraped double V-ways, and the table slides on precision hand-scraped V and Flat ways coated with Turcite B, all supported by an Auto Lubrication System.
The maximum height from the table surface to the spindle centerline is 248 inches. Standard features include a Micro Down Feed system, a Chuck Controller with De-Mag, a Built-in Proximity Switch, and a Table-Mounted Diamond Dresser. The machine operates on 230 or 460 volts, 3-phase power.

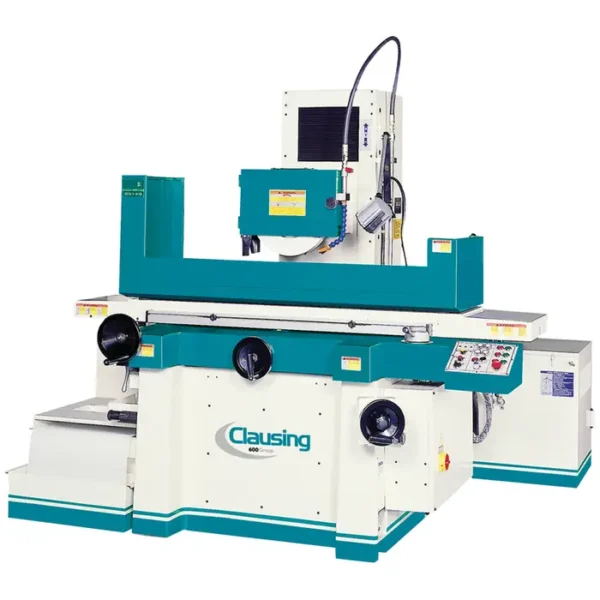

The Clausing CSG3A1640 is a large-capacity Automatic Precision Surface Grinder featuring a 16-inch by 40-inch table size. It is designed for heavy-duty production with automated three-axis movement and exceptional structural rigidity for high-accuracy grinding.
