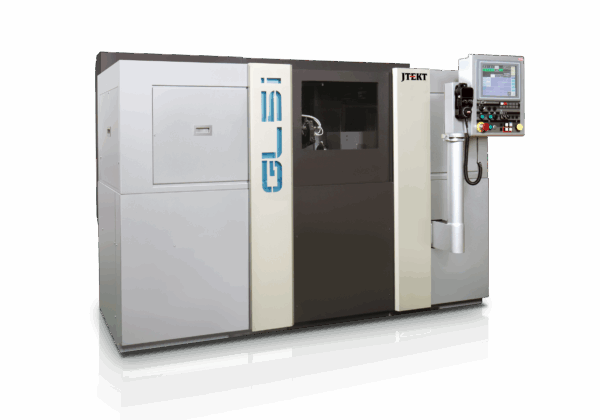

Engineered to set the standard for high-production applications that require long-term machining accuracy, the GL5i-150 provides exceptional structural integrity and precision. Key features include a hydrostatic wheelhead bearing and way system for maximum stability and minimal friction, and the patented TOYODA STAT BEARING and floating plate to ensure consistently high accuracy and positioning over extended use. This versatile machine is offered in both plain-head and angled-head configurations.

The GL5i-150 is the largest capacity machine in the GL5-i series, optimized for long production runs of mid-to-long length components. Its key specifications are:

• Distance Between Centers: 59.0 inches (1,500 mm), accommodating longer cylindrical parts.
• Swing Over Table: 12.6 inches (320 mm).
• Maximum Grinding Diameter: 8.6 inches (220 mm).
• Weight Capacity: 330 pounds.
• Wheel Surface Speed: It is capable of high-speed grinding at 11,800 SFPM (60 m/s) for fast cycle times and high material removal rates.

The GL5i-150 is the ideal solution for manufacturers demanding superior speed and consistent high-precision finishing on medium-to-long cylindrical parts in a dedicated, high-throughput manufacturing setting.
