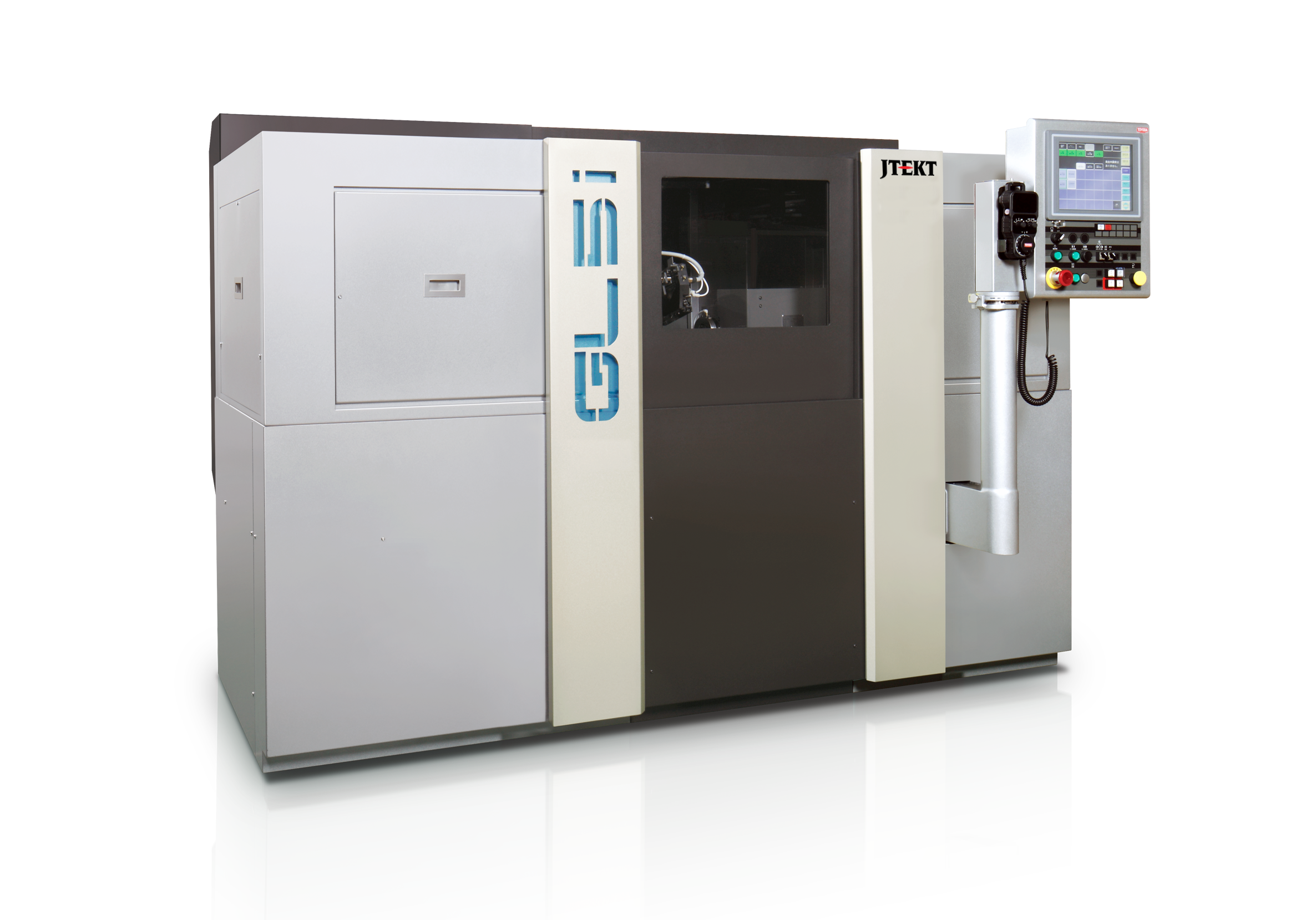

The GL5i-63 is a high-speed, high-accuracy cylindrical grinding machine from the JTEKT Toyoda GL5-i series, specifically designed for dedicated processes in continuous high-production environments.

This grinding machine is built to maintain precision and consistency over long production runs. It features an advanced hydrostatic wheelhead bearing and way system, alongside the proprietary TOYODA STAT BEARING and floating plate, which collectively ensure extremely high accuracy, reliable positioning, and reduced maintenance. The machine is available in both plain-head and angled-head configurations, making it versatile for various production needs while prioritizing dedicated, high-volume grinding tasks.

The key specifications for the GL5i-63 offer a greater distance capacity than the base model in its series:

• Distance Between Centers: 24.8 inches (630 mm), providing substantial capacity for mid-length production parts.
• Swing Over Table: 12.6 inches (320 mm).
• Maximum Grinding Diameter: 8.6 inches (220 mm).
• Weight Capacity: 330 pounds.
• Wheel Surface Speed: Designed for aggressive material removal, it operates at a high speed of 11,800 SFPM (60 m/s).

The GL5i-63 is an excellent choice for manufacturers seeking superior speed and high-precision finishing on medium-length cylindrical components in a high-throughput setting.
