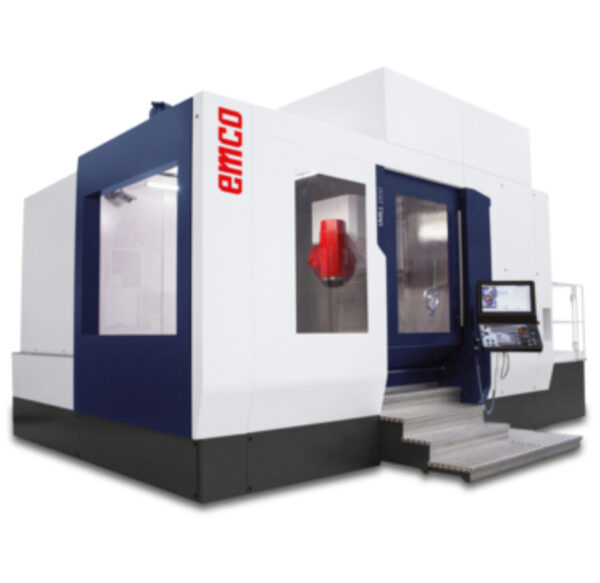

The EMCO Universal Machining Center UMILL 1800 is a large-format, high-performance 5-axis Gantry Milling Machine engineered to perform both milling and turning operations on complex, heavy workpieces in a single clamping setup.

Features & Benefits

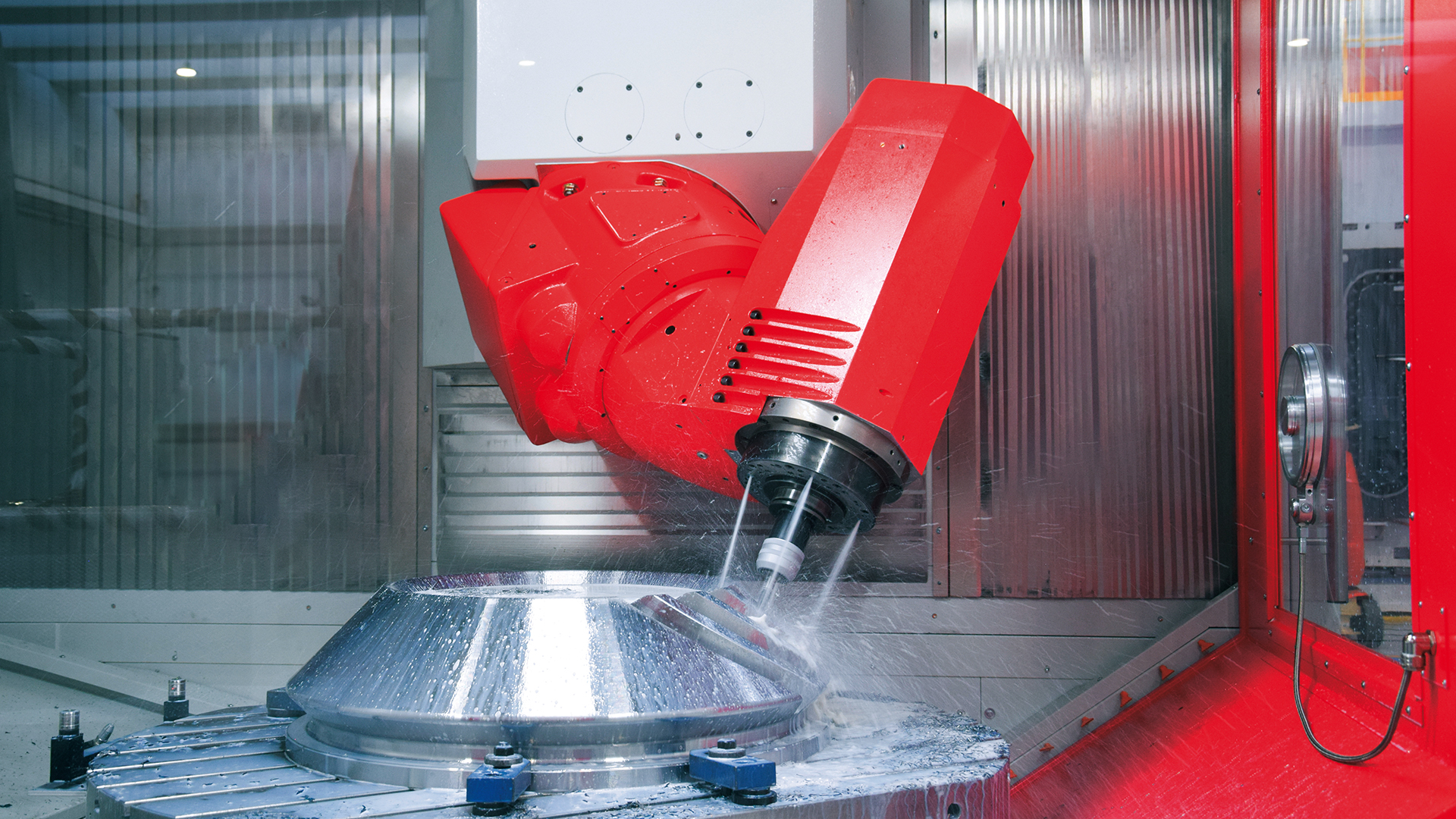

• Integrated Mill-Turn Capability: The machine features a powerful rotary table with a torque motor that supports both precision milling and high-power turning operations, allowing complete machining of large parts (up to Ø 2150 mm) in one setup.
• Expansive Work Area: Offers wide axis travels (1800 x 2150 x 1250 mm) while maintaining reduced overall dimensions, maximizing floor space efficiency in the workshop.

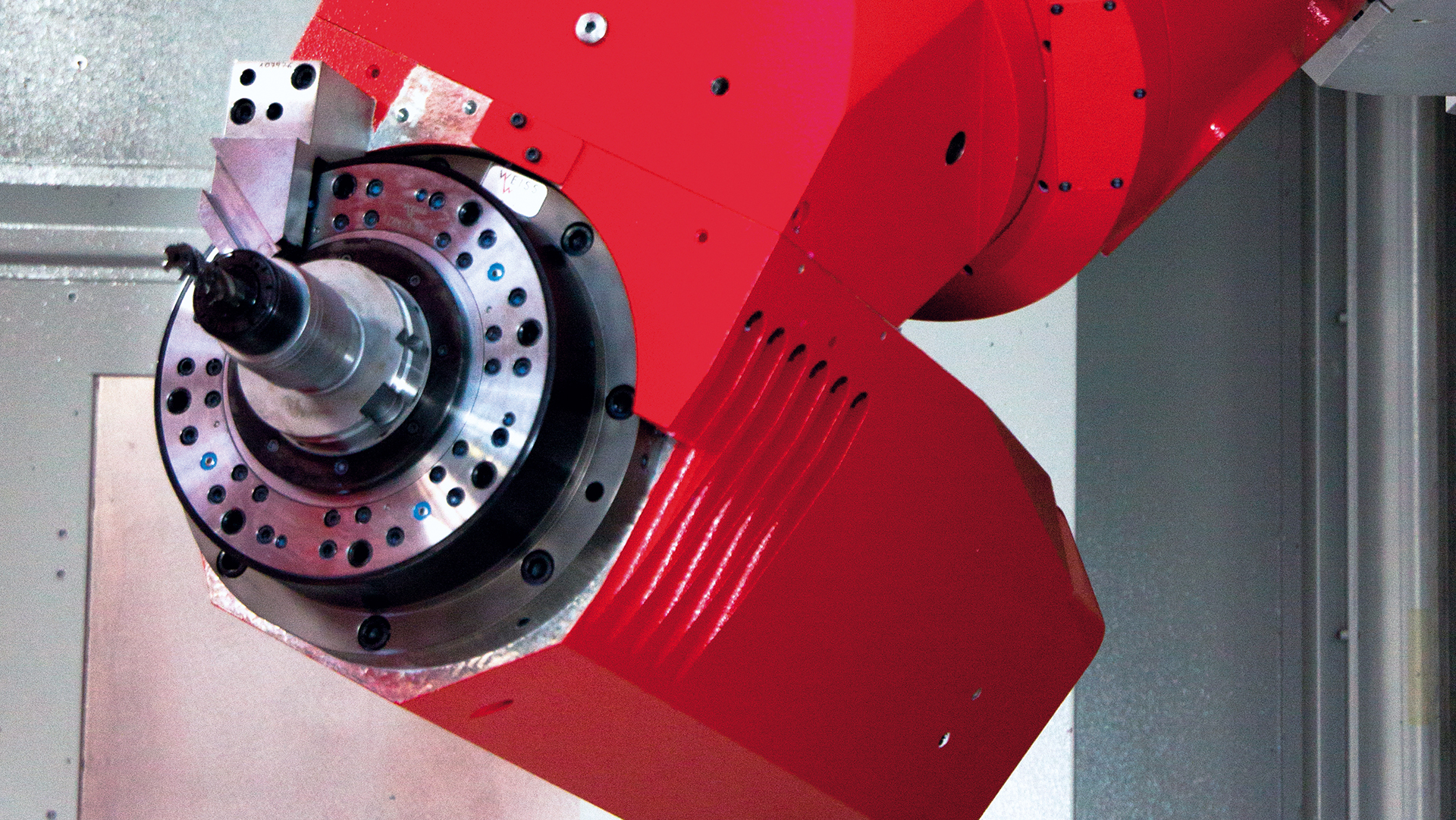

• High Dynamics and Precision: Achieves high-speed processing with feed rates up to 60 m/min and includes simultaneous milling heads that provide a 15° undercut capability, ideal for complex contours like those found on impellers and aircraft components.
• Spindle Options: Available with multiple powerful spindle configurations, including a mechanical spindle with 600 Nm torque (S1) and a high-speed spindle version running at 12,000 rpm.

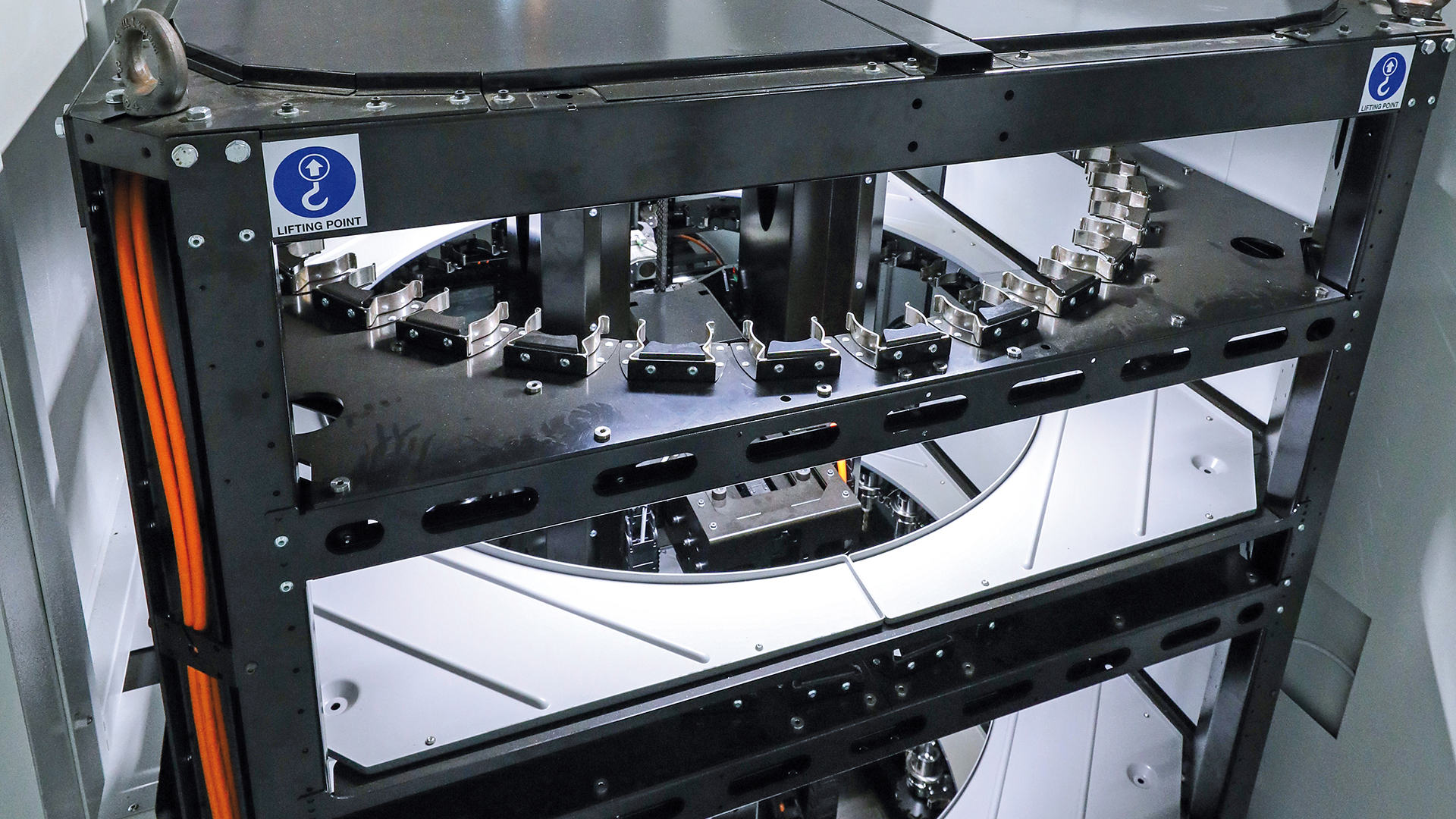

• Tool Capacity: Supports long, automated production runs with large, customer-specific tool magazines located outside the working area, with capacity for up to 203 pockets (HSK 63A or HSK 100A/T).
• Smart Control: Equipped with advanced CNC systems like Siemens 840D sl or Heidenhain TNC 640 HSCI, and includes the EMCONNECT Digital Process Assistant for integrated production management and enhanced productivity.
