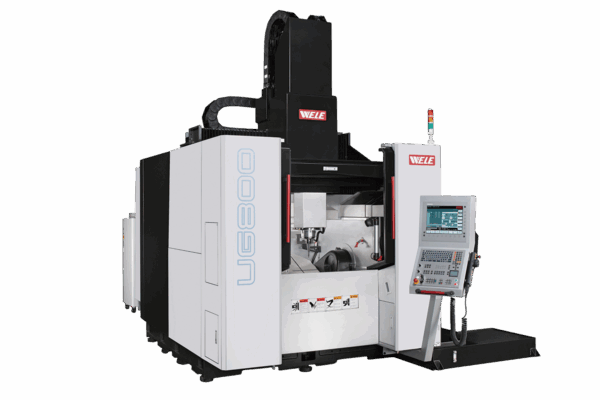

The UG800 Five-Axis Vertical Machining Center from WELE is a top-tier universal solution engineered for maximum accuracy, strength, and long-term reliability in complex, multi-axis operations. It is built upon an advanced overhead gantry structure supported by twin ballscrew drives and fully validated through FEM analysis to ensure exceptional rigidity and stability under the most demanding cutting conditions.

At the heart of its performance is the high-precision trunnion rotary table, which is developed in-house using WELE’s proprietary technologies. This table incorporates a patented backlash elimination system and a robust rotary axis brake system with up to 5-000 Nm of brake torque, delivering unmatched stability, torque capacity, and precise positioning accuracy for 5-axis operations. The machine’s high-performance spindle is built in, balanced to strict G4.0 standards, and delivers up to 22-000 RPM with 45 HP (46 kW) of power via an HSK A63 taper interface, ensuring superior surface finish and vibration-free cutting. Further enhancing precision, the machine features linear scale feedback on the X, Y, and Z axes and precision hand-scraped surfaces for superior damping. With a 31.5 inch table size and travels of 31.5 x 37.4 x 25.6 inches (X, Y, Z), the UG800 provides a platform built for both today’s challenges and tomorrow’s demands in high-end machining.
