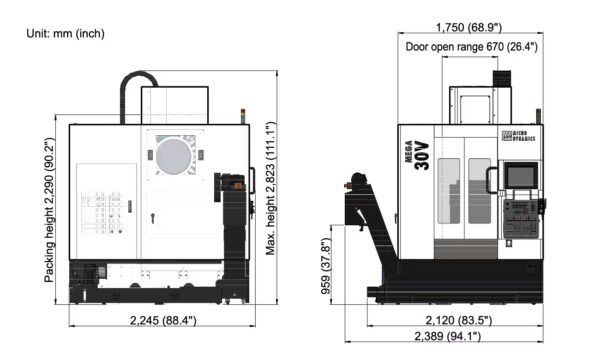

The MICRO DYNAMICS MEGA 30V is a Tiny But Mighty 3-axis Vertical Machining Center engineered for precision-oriented industries, including mold making, aerospace, automotive, and semiconductors. It is specifically designed with the smallest footprint in its class (only 94.1″ x 88.4″) to maximize floor space efficiency.

The MEGA 30V features a rigid structural design utilizing FC300 Meehanite casting with an optimized rib structure to ensure machining stability. Its high performance is driven by a standard 15,000 rpm Built-in Spindle (40 Taper, 41 hp, 104 ft-lbf), with options up to 20,000 rpm. Non-cutting time is significantly reduced through high-speed motion, boasting rapid feed rates of up to 2,047 ipm on the X and Y axes, and a blazing fast 1.2-second tool-to-tool change time from its standard 30-tool capacity ATC.

To ensure consistent quality, the machine incorporates DYPEC Dynamic Predictive Error Compensation technology, which corrects position errors caused by thermal changes with a resolution of 0.1 micrometer. Control is managed by a state-of-the-art MITSUBISHI M830VW High Speed CNC Controller paired with the intuitive MICRO DYNAMICS HMI for easy setup and operation. With travel of 30″ x 20″ x 20″ (X-Y-Z) and a 33.9″ x 19.7″ table size, the MEGA 30V delivers superior material removal and accuracy in a compact package.
