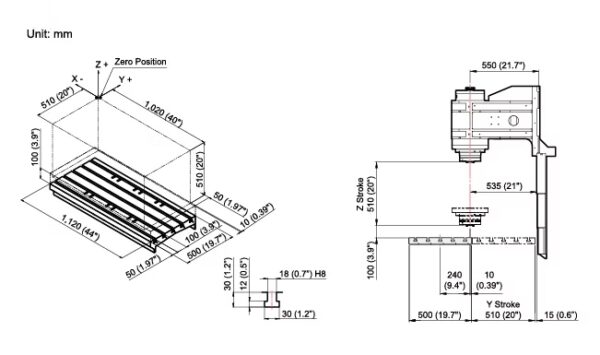

The MEGA 40V is the compact, durable, and precise offering in the MICRO DYNAMICS V-series of Vertical Machining Centers, built to deliver powerful and precise results for manufacturers in space-constrained workshops. It offers a generous work envelope with 40″ in X-axis, 20″ in Y-axis, and 20″ in Z-axis travel. The machine’s stability is ensured by its FC300 Meehanite casting and an optimized ribbed structure developed using FEA analysis.

Performance is driven by a standard 15,000 rpm Built-in Spindle (upgradable to 20,000 rpm), which provides 41 hp and 104 ft-lb of torque for excellent cutting performance. To minimize non-cutting time, the MEGA 40V boasts rapid feed rates of 2,047 ipm on the X and Y axes, complemented by a High Speed Automatic Tool Changer that achieves a tool-to-tool change time of only 1.2 seconds. It comes standard with a 40-tool magazine capacity.

A key feature for quality control is the DYPEC Dynamic Predictive Error Compensation system, which corrects position errors caused by thermal changes to ensure 0.1 μm resolution and high sustained accuracy. The machine is controlled by the reliable MITSUBISHI M830VW High Speed CNC Control paired with the intuitive MICRO DYNAMICS HMI for easy operation and setup.
