The TERA 50V/50 is the heavy-duty model in the MICRO DYNAMICS TERA series, explicitly engineered for demanding machining tasks that require higher torque output and exceptional rigidity. Unlike its counterparts, the TERA 50V/50 is built with a larger 50 Taper built-in spindle—supporting larger motors and more robust drive systems. This delivers significantly higher maximum torque of 420 ft-lb and 45 hp of power, making it ideal for deep drilling, heavy-duty face milling (up to $6.3$ inches), and high material removal rates (e.g., $49.1$ cubic inches per minute when drilling $\varnothing 3.1$ inch).

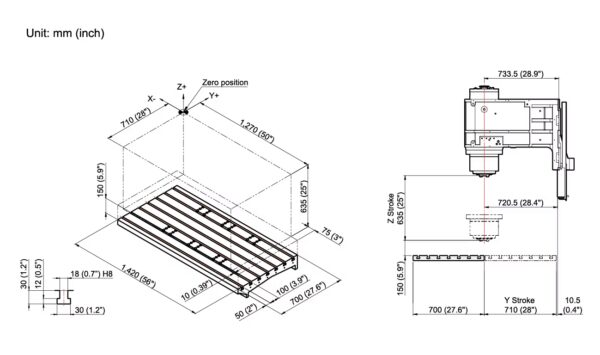

The increased taper size and greater contact surface area ensure exceptional rigidity and stability, which reduces vibration and improves surface finish during heavy cutting. The VMC features large travels of $50$ inches on the X-axis and $28$ inches on the Y-axis, accommodating a table load up to 3,307 lb. Speed and efficiency are maintained with rapid feedrates up to 2,047 ipm on the X and Y axes, significantly reducing non-cutting time. Furthermore, the TERA 50V/50 utilizes DYPEC Dynamic Predictive Error Compensation to correct position errors caused by thermal changes, ensuring an impressive positioning accuracy of $0.0002$ inches. Tool management is handled by a 32-tool capacity, bi-directional, random-selection Automatic Tool Changer with a multi-speed double arm that adjusts to heavy tools, ensuring both speed and reliability.
