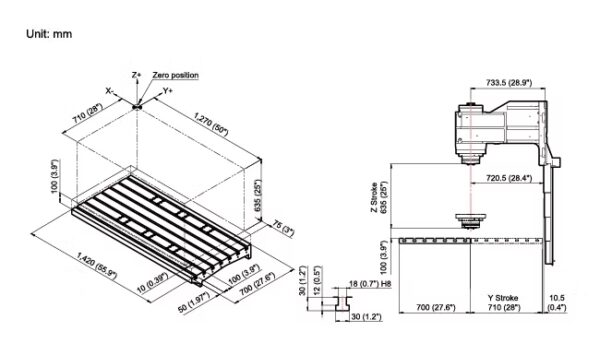

The TERA 50V is a robust and highly efficient Vertical Machining Center from the MICRO DYNAMICS TERA series. Designed to provide powerful and precise results, it serves demanding sectors including dies and molds, automotive, aerospace, and general job shops. The machine is built on a ribbed FC300 Meehanite casting structure, which is optimized using FEA analysis to ensure exceptional machining stability and rigidity. It offers substantial travel capacity of 50 inches (X) x 28 inches (Y) x 25 inches (Z) on a $55.9$ inch by $27.6$ inch table with a maximum load of 3,307 lb.

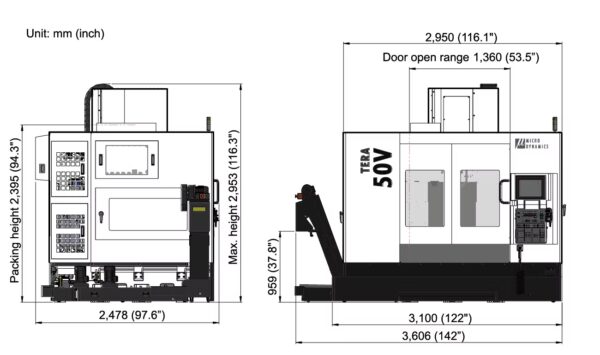

A key feature is the 15,000 rpm built-in spindle (standard) that provides 41 hp and a max cutting torque of $141$ Nm, making it ideal for both heavy material removal and fine finishing. The machine dramatically reduces non-cutting time through high rapid feed rates up to 2,047 ipm on the X and Y axes, coupled with a High Speed Automatic Tool Changer that achieves a tool-to-tool change time of 1.2 seconds with a standard 40-tool capacity. Precision is maintained via the proprietary DYPEC Dynamic Predictive Error Compensation system, which continuously corrects positional error caused by thermal changes. All operations are managed through the MITSUBISHI M830VW High Speed CNC Control system, integrated with the intuitive MICRO DYNAMICS HMI. Despite its large travel capacity, the machine boasts a Minimal Footprint of only $142$ inches by $97.6$ inches, optimizing floor space efficiency.
