The TERA 60V / 50 is the robust, high-performance model within the MICRO DYNAMICS TERA V series, offering significantly more torque and rigidity than its 40-taper counterparts. This 3-axis VMC is specifically engineered to handle deep drilling, heavy-duty milling, and demanding cutting conditions on hard materials and large components. Its 50 Taper built-in spindle is the core of its power, supporting larger motors and more robust drive systems to achieve a massive 420 ft-lb max torque and 45 hp at up to 12,000 rpm.

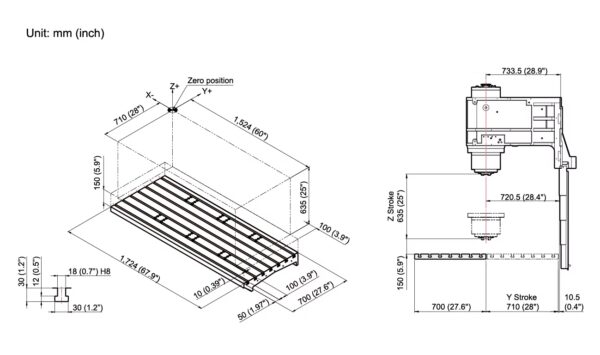

The increased taper size provides a greater contact surface area, which enhances exceptional rigidity and stability, crucial for reducing vibration and improving surface finish during heavy material removal. The machine features a large work envelope with 60 inches of X-axis travel and a maximum table load of 4,409 lb. Productivity is further enhanced by rapid feed rates of up to 2,047 ipm on the X and Y axes, reducing non-cutting time. Quality control is maintained by the advanced DYPEC Dynamic Predictive Error Compensation system, which automatically corrects position errors caused by thermal changes. Tool management is handled by a high-speed, 32-position Automatic Tool Changer (ATC), which features a multi-speed double arm for safe and reliable handling of larger, heavier tooling, including face mills up to $\varnothing 9$ inches. The machine is controlled by a MITSUBISHI M830VW CNC controller with a MICRO DYNAMICS HMI for intuitive operation.
