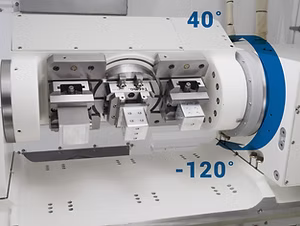

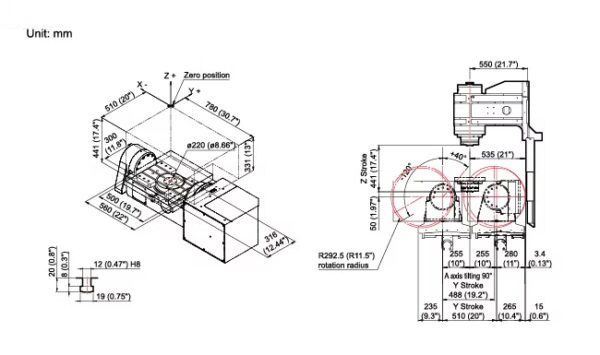

The MEGA 30VT is a high-performance model in the MICRO DYNAMICS VAPC series, specifically designed as a Vertical Trunnion machine for advanced 4+1 axis applications, with an optional upgrade to true five-axis simultaneous machining. This machine boasts generous travels of 30 inches (X), 20 inches (Y), and 17.4 inches (Z), making it versatile for a range of components. The core of its multi-axis capability is the rugged trunnion table, which provides a tilting axis motion range of 40º -120º and a full 360 ºrotary C-axis.

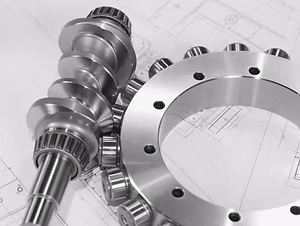

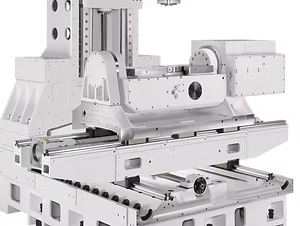

Precision and speed are ensured by the use of a Roller Gear Cam Mechanism instead of traditional worm gears for the trunnion, offering enhanced rigidity, repeatability, and zero-backlash performance. The machine is powered by a 15,000 rpm Built-in Spindle (40 Taper) with 41 hp, delivering 104 ft-lb of max cutting torque. Non-cutting time is drastically reduced by rapid feed rates up to 1,889 ipm and a high-speed Automatic Tool Changer (ATC) with a 1.2-second tool-to-tool change time. Further enhancing accuracy is the proprietary DYPEC Dynamic Predictive Error Compensation system, which actively corrects thermal position error. All these features are housed in an optimized structure utilizing FC300 Meehanite casting and an optimized rib design for superior stability, all while maintaining a remarkably minimal footprint.
