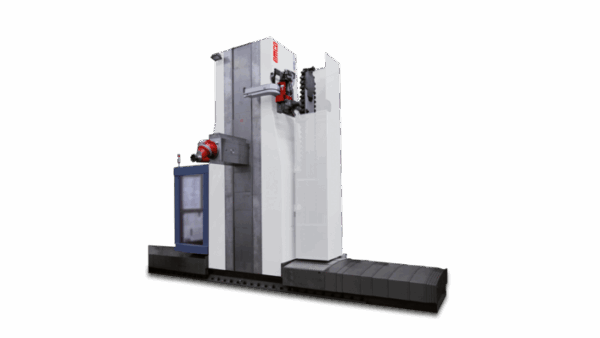

The EMCO Mecmill Plus represents the pinnacle of Universal Milling Machine design, engineered to meet the highest demands for precision and large component machining, often fulfilling the requirements of a Horizontal Boring Mill. The machine is structurally defined by its cross-slide and moving column on a rigid base, utilizing a highly stable Box-in-Box construction. This design is further enhanced by a patented Querschlitten weight compensation system that ensures superior dynamic accuracy, especially during long travels.

The machine handles colossal workpieces, supporting a maximum table load of 15-000 kg per square meter. It boasts impressive travel ranges, with the X-axis extending to 6000 mm and more, the Y-axis to 1850 mm, and the Z-axis reaching up to 5000 mm. All three main axes feature fast and precise motion with a rapid traverse rate of 25 meters per minute.

Driving the cutting performance is a 40 kW main spindle motor providing a massive 1-200 Nm of torque. The Mecmill Plus offers versatility through a variety of interchangeable milling heads:

• Mechanical heads for 3 plus 2 or 5-axis operations, providing up to 1-200 Nm of torque and 6-000 RPM.

• Electro-spindle heads for 5 continuous axes operation, capable of reaching up to 12-000 RPM.

All mechanical heads feature direct drive technology, and the optional fork milling heads provide a significant 25-degree undercut capability. Tool management is highly automated and customizable, featuring large magazine capacities ranging from 60 up to 120 positions on the machine column, or an expansive automatic turret tool changer with up to 203 places. Advanced options also include the WONDER B-R-A- BALANCING RAM ASSET feature to automatically compensate for ram sag and maintain the highest level of precision in straightness and flatness.
