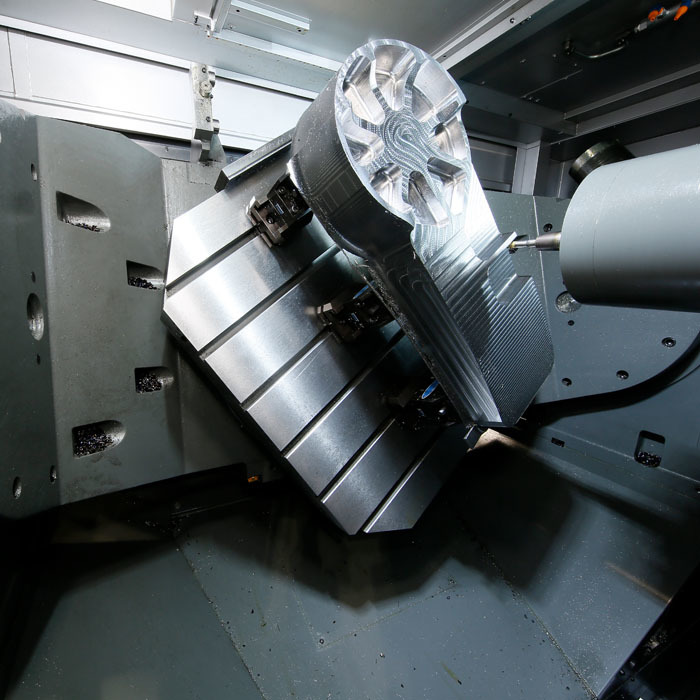

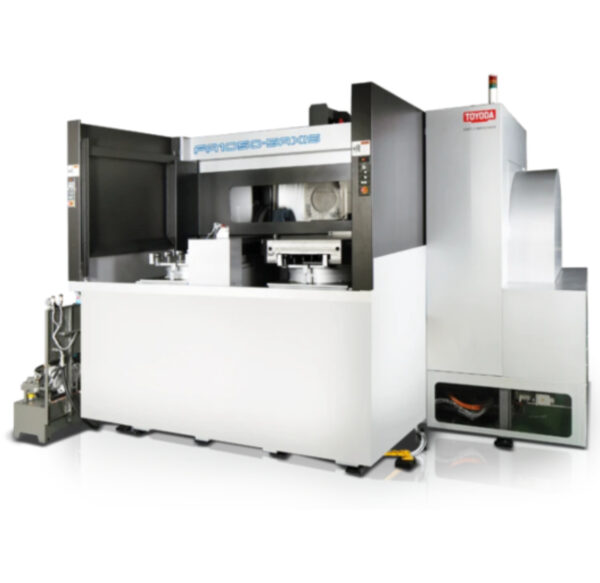

The FA1050S-5Axis redefines complex part manufacturing within the 1000-1050mm Pallet series of JTEKT – TOYODA Horizontal Machining Centers. This machine achieves true simultaneous 5-axis machining excellence through its integrated trunnion table, which is supported by dual-drive mechanisms for heavy workpiece stability. This configuration ensures that even heavy components up to 4,400 lbs (2,000 kg) remain precisely positioned during demanding cutting cycles.

Built with industry-leading high-precision performance as a core focus, the FA1050S-5Axis boasts exceptional positioning accuracy. It features high-resolution rotary encoders to guarantee precise positioning, resulting in a Rotary Positioning Accuracy of 5 arc seconds and a Linear Position Accuracy of 0.000078 inches (0.002 mm) over the full stroke. The machine provides generous travels, including 59.1 inches (1,500 mm) in X and 55.1 inches (1,400 mm) in Y, accommodating maximum workpiece swings of 51.18 inches (1,300 mm). With spindle speed options up to 15,000 RPM (CAT50 taper) and rapid feed rates of 944 ipm (24 m/min), the FA1050S-5Axis is engineered for speed, rigidity, and reliability across specialized applications involving ferrous, non-ferrous, and high-temp alloys. Optional tool storage capacities range widely from 60 to 384 tools.
