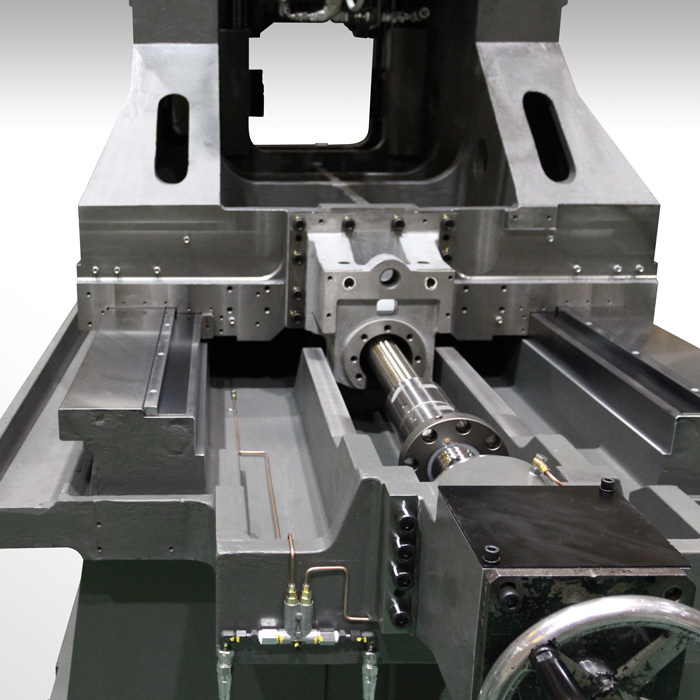

The FA1050S is JTEKT-TOYODA’s high-performance answer in the 1000-1050mm pallet class of Horizontal Machining Centers. Engineered for industry-leading high-precision performance, this machine is optimized for a balance of speed, rigidity, and reliability. Its core strength lies in its construction, which features box guideways—a design choice that ensures a robust column and bed, allowing for powerful machining while maintaining high accuracy and excellent dampening characteristics.

Key specifications include a generous 41.3-inch by 41.3-inch (1,050 mm) pallet with a 6,600 lb (3,000 kg) maximum load capacity. The machine boasts a large work envelope, with a maximum workpiece swing of 72.83 inches (1,850 mm). The standard configuration includes a 6,000 RPM direct-drive spindle, with available options for a heavy-cutting 6,000 RPM geared-head spindle or a high-speed 15,000 RPM spindle. With rapid feed rates reaching 944 ipm (24 m/min) in the X, Y, and Z axes, the FA1050S minimizes non-cutting time. Furthermore, the machine delivers exceptional precision, featuring linear position accuracy of plus or minus .00012 inch and rotary table index accuracy of plus or minus 3 arc seconds, making it ideal for the most demanding production environments across all material types.
