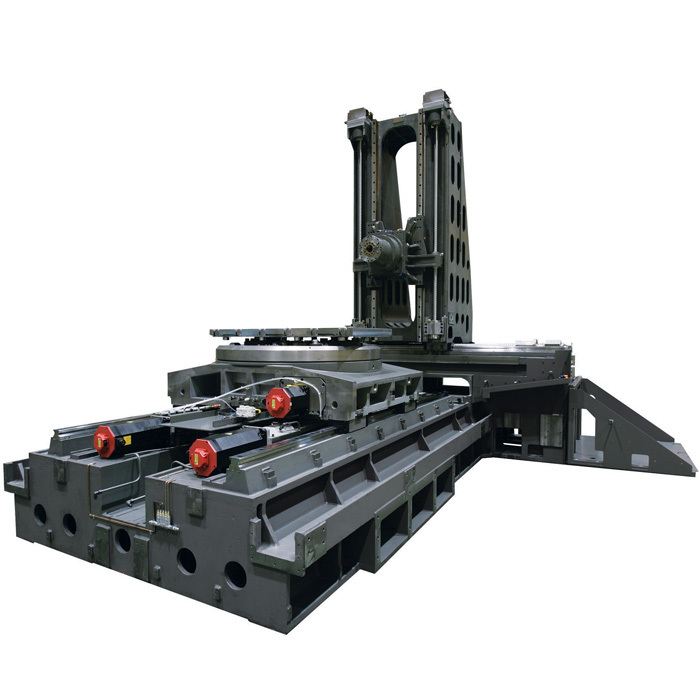

The FH1000SX from JTEKT TOYODA is engineered for industry-leading high-precision performance and exceptional material removal rates. Built upon a Meehanite cast iron base, it provides the structural rigidity necessary to suppress vibration during the heaviest of cuts, ensuring superior surface finishes and part accuracy. This HMC utilizes a substantial 1,000 mm x 800 mm pallet and offers large travels of 63.0 inches (X-axis), 55.1 inches (Y-axis), and 72.8 inches (Z-axis), accommodating workpieces up to 70.87 inches in diameter and 62.99 inches high, with a maximum pallet load of 6,600 lb (3,000 kg).

The machine emphasizes speed and efficiency with a rapid feed rate of 2,126 ipm across all axes, supported by a unique dual ballscrew drive system on the Y and Z axes. The CAT50 spindle offers flexible speed options, including a standard 8,000 RPM spindle or an optional 15,000 RPM high-torque spindle delivering 887 ft-lb (1,202 Nm) of torque. Precision is guaranteed with a linear position accuracy of .00012 inches full stroke and a linear repeatability of .00008 inches. Tool management is highly flexible, with magazine capacity options ranging from 60 to 330 tools, making the FH1000SX a robust and versatile solution for continuous, high-volume production across all material types.
