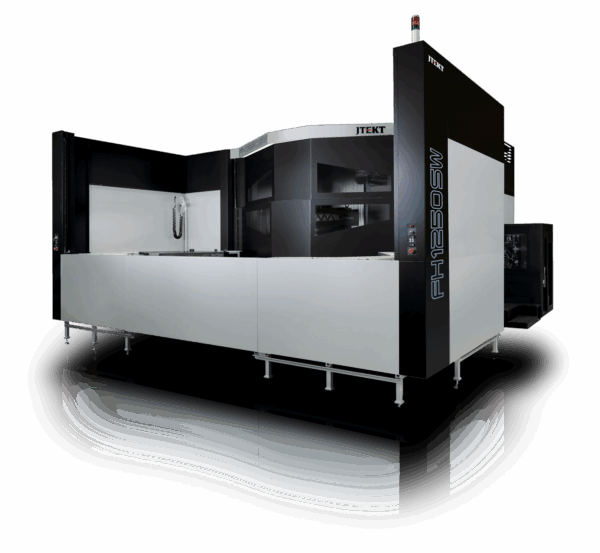

The FH1250SW from JTEKT TOYODA is engineered for manufacturers handling large-scale, complex components that demand both high stock removal and exceptional precision. As a key model in the 1250 mm pallet series, its standout feature is the 5.1-inch x 21.65-inch Quill Boring Bar system. This quill-spindle architecture provides an independent W-axis travel of 21.6 inches, making it ideal for deep-hole drilling and complex boring operations where rigidity and accuracy are paramount. The machine is designed for heavy-duty operations, supporting a maximum load of 11,000 lbs (5,000 kg) on its 1250 mm x 1250 mm pallet.

The performance is driven by a 60 HP (44.7 kW) spindle delivering 968 ft-lb (1,313 Nm) of torque at a top speed of 3,000 RPM. The combination of this powerful spindle and the quill movement allows for multi-operation processing on a single machine, drastically improving cycle time and process efficiency. With generous travels (2,200 mm X-axis, 1,500 mm Y-axis, and 1,850 mm Z-axis) and high accuracy specifications (0.003 mm linear position accuracy), the FH1250SW is the optimal choice for large-part machining in industries like oil and gas, aerospace, and heavy equipment.
