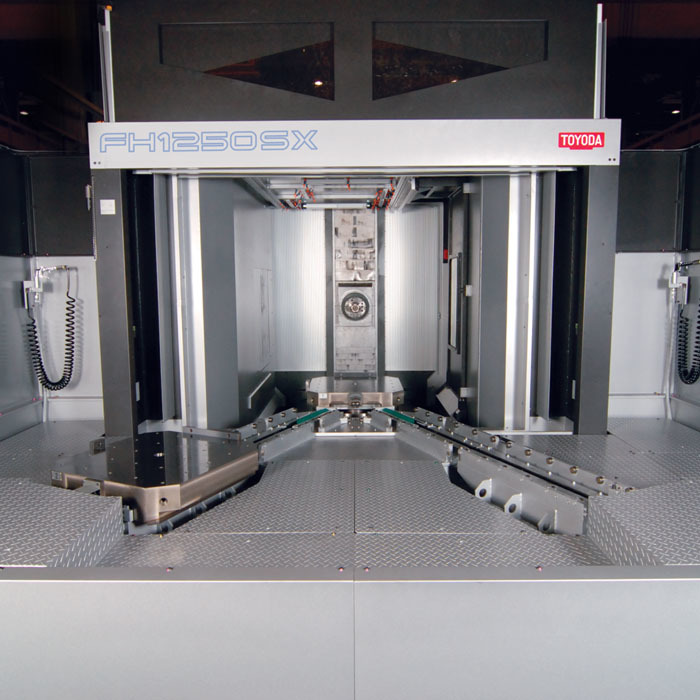

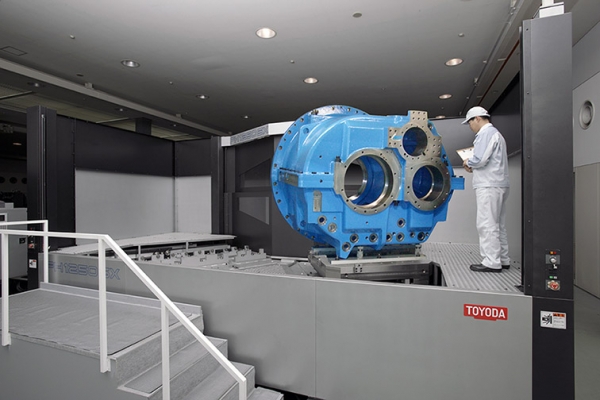

The FH1250SX by JTEKT TOYODA is a dedicated high-performance Horizontal Machining Center designed to deliver industry-leading precision and speed for the heaviest and largest workpieces. Anchored by a heavy-duty Meehanite cast iron base, the machine achieves maximum rigidity and thermal stability essential for demanding, continuous operation. It features a generous 1,250 mm x 1,250 mm pallet with an 11,000 lb (5,000 kg) load capacity, capable of handling workpieces up to 84.49 inches (2,146 mm) in swing diameter.

Performance is driven by a selection of powerful spindles, including a standard 6,000 RPM option, and high-performance options up to 15,000 RPM (CAT50). Precision is maintained via cylindrical roller guides for increased speed and a dual ballscrew drive on the Y and Z axes, ensuring fast and accurate positioning with rapid feed rates up to 1,654 ipm (42 m/min). The machine’s accuracy specifications are impressive, boasting linear position accuracy of .00012 inches over the full stroke and linear repeatability of 0.00008 inches, ensuring first-part-right quality for industries requiring tight tolerances like aerospace and heavy machinery. With expansive travels of 86.6 inches in X, 63 inches in Y, and 72.8 inches in Z, the FH1250SX is the ideal platform for manufacturing large, complex components from ferrous, non-ferrous, and high-temp alloys.
