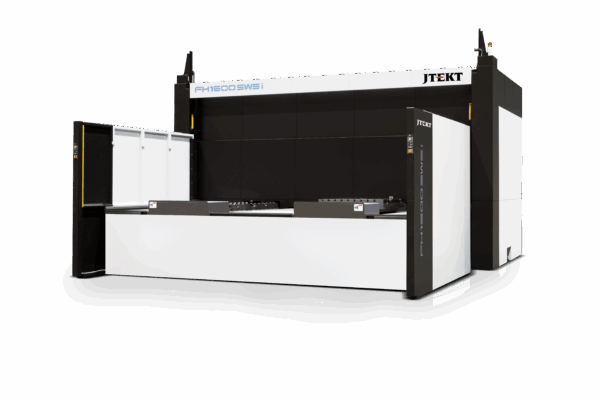

The FH1600SW-i is JTEKT TOYODA’s premier Horizontal Machining Center in the 1600 mm pallet series, specifically designed for machining exceptionally large and heavy parts. It stands out by offering the largest work envelope in its class, accommodating workpieces up to 126 inches (3,200 mm) in diameter and 82.6 inches (2,100 mm) in height, with a maximum load capacity of 17,600 lbs (8,000 kg) on its 63-inch x 49.2-inch (1,600 mm x 1,250 mm) pallet.

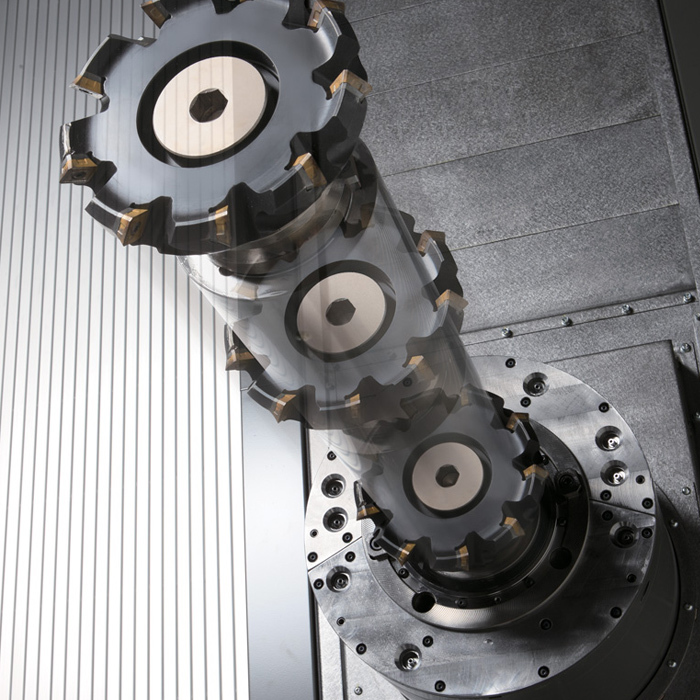

Engineered for heavy cutting across materials, including ferrous, non-ferrous, and high-temp alloys, the machine is equipped with a powerful 5.9-inch (150 mm) diameter quill spindle that generates 1,560 ft-lb (2,115 Nm) of torque at 4,000 RPM. The robust design ensures high material removal rates while maintaining superior precision and reliability. Its expansive travel ranges are 118.1$ inches (3,000 mm) in the X-axis, 74.8 inches (1,900 mm) in the Y-axis, and 82.6 inches (2,100 mm) in the Z-axis, alongside a 29.5-inch (750 mm) W-axis travel. With rapid feed rates of 1,575 ipm (40 m-min) and high tool storage capacities (up to 330 tools), the FH1600SW-i provides the machining capacity and flexibility required for the most demanding large-format manufacturing projects.
