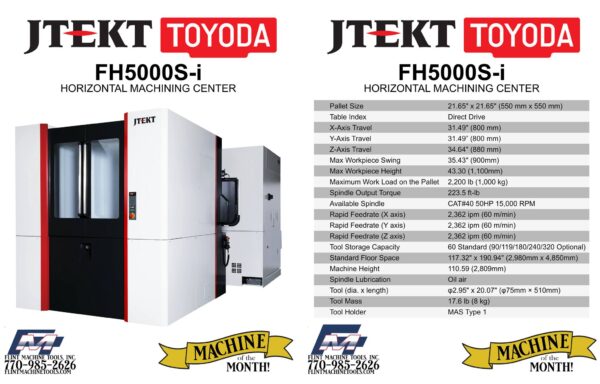

The FH5000S-i from the JTEKT-TOYODA 5000 Series is engineered to deliver industry-leading high-precision performance optimized for speed, rigidity, and reliability. This machine meets the growing demand for high metal removal rates, short cycle times, and superior surface finishes in high-volume production environments. Its core is a powerful, high-acceleration spindle offering 15,000 RPM standard, 50 HP, and a strong 303 Nm of torque, with a 20,000 RPM option available.

The machine is built around a 21.65-inch square pallet capable of handling a maximum load of 2,200 lb (1,000 kg). Key to its high speed is the direct drive B-axis table, which achieves a 90-degree index time of just 0.7 seconds, and rapid feed rates reaching 2,362 ipm (60 m-min) across the X, Y, and Z axes. The FH5000S-i supports continuous, efficient operation with a standard 60-tool ATC capacity, expandable up to 330 tools- allowing manufacturers to take advantage of more aggressive, high-volume machining in a compact footprint. Its robust design ensures excellent performance across ferrous, non-ferrous, and high-temperature alloys.
