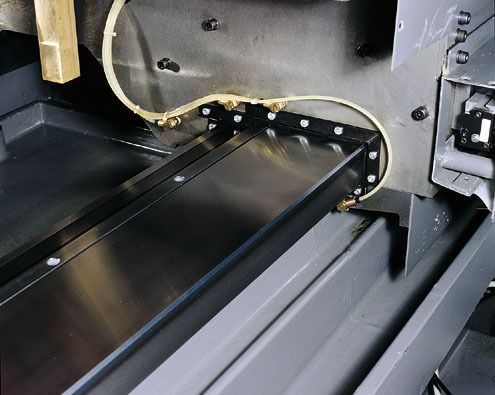

The FA630S is a flagship model in the JTEKT TOYODA 630 mm pallet series of Horizontal Machining Centers (HMCs), designed to deliver industry-leading high-precision performance optimized for speed, rigidity, and reliability. The machine’s core strength lies in its heavy-duty construction, featuring a robust column and bed coupled with box guideways. This configuration provides exceptional dampening characteristics and superior stability, allowing for powerful machining while maintaining high accuracy—especially crucial for demanding materials like high-temp alloys (Titanium, Stainless Steel).

Key specifications highlight its performance capability: it handles 24.8-inch x 24.8-inch (630 mm x 630 mm) pallets with a maximum load capacity of 2,860 lb (1,300 kg). The machining envelope offers generous travels of 39.37 inches in the X-axis, 33.46 inches in the Y-axis, and 29.52 inches in the Z-axis. With a high-speed 15,000 RPM spindle and rapid feed rates up to 1,417 ipm (36 m/min), the FA630S achieves quick material removal rates. Crucially, its dedication to quality is demonstrated by its precision metrics, including a Linear Position Accuracy of 0.00012 inch full stroke and a Linear Repeatability of 0.00008 inch, making the FA630S an ideal choice for high-volume, high-tolerance production.
