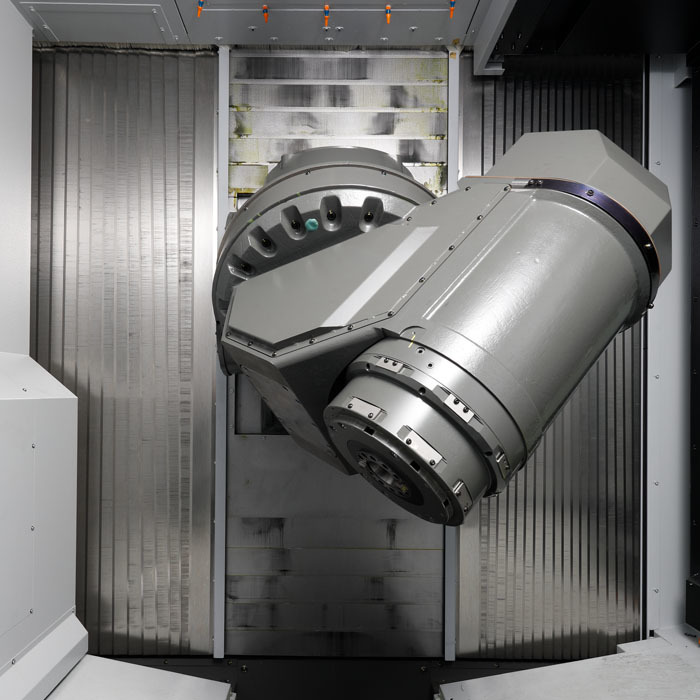

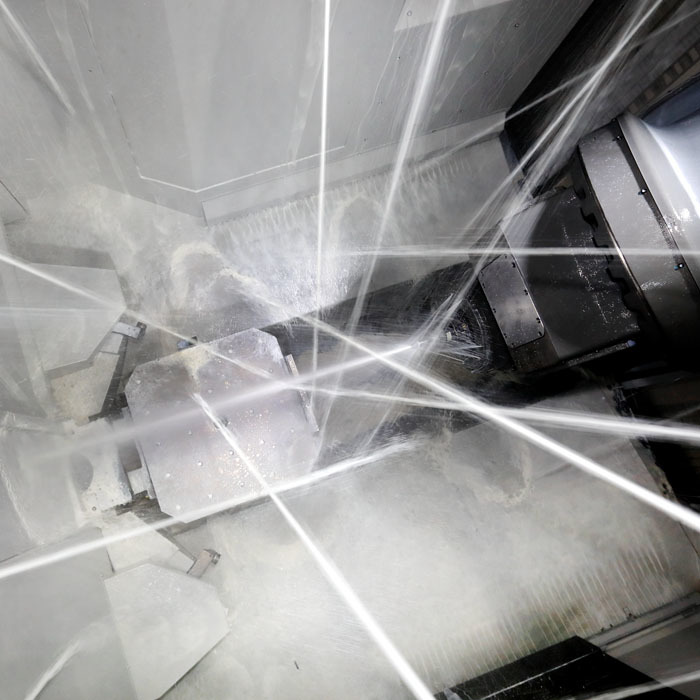

The JTEKT TOYODA FH630SX-i 5-Axis is a specialized Horizontal Machining Center developed on the robust 630 mm pallet platform, optimized for complex, multi-sided component processing in a single setup. This machine is defined by its industry-leading high precision performance and exceptional structural rigidity, ensuring reliability across long production cycles. The core of its capability lies in the tilting spindle design, complemented by a robust C-axis drive train that provides an enlarged swivel range of 230 degrees for wider components and increased part accessibility.

Key performance specifications include a 24.8-inch by 24.8-inch (630 mm by 630 mm) pallet size capable of handling a maximum load of 3,306 lb (1,500 kg). The machine offers generous travels in X, Y, and Z axes, with the Z-axis reaching 41.33 inches (1,050 mm). Manufacturers can select between an 8,000 RPM high-torque spindle and an optional 15,000 RPM high-power, multi-use spindle, both utilizing a CAT50 taper with a replaceable taper design for high maintainability. With a rapid feed rate of 2,362 ipm (60 m per minute) and tool storage capacity options up to 330 tools, the FH630SX-i 5-Axis is a productivity powerhouse. Its commitment to quality is underscored by its superior accuracy, including a linear position accuracy of plus or minus 0.00007 inches (0.002 mm) over the full stroke and a B and C Axis index accuracy of plus or minus 3.5 arc seconds.
