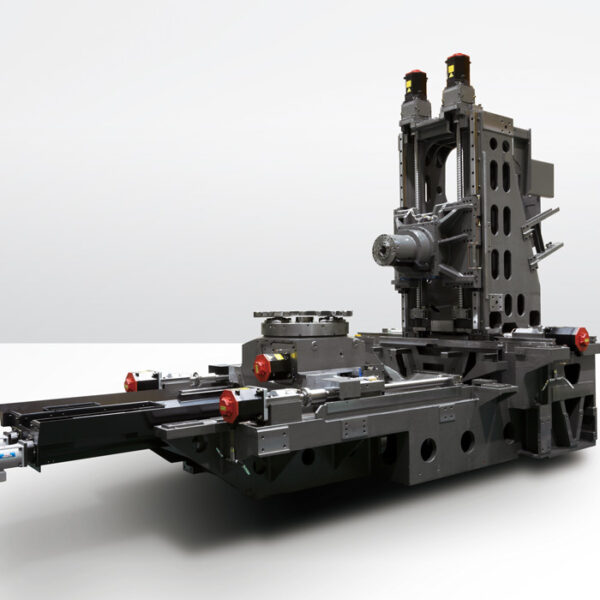

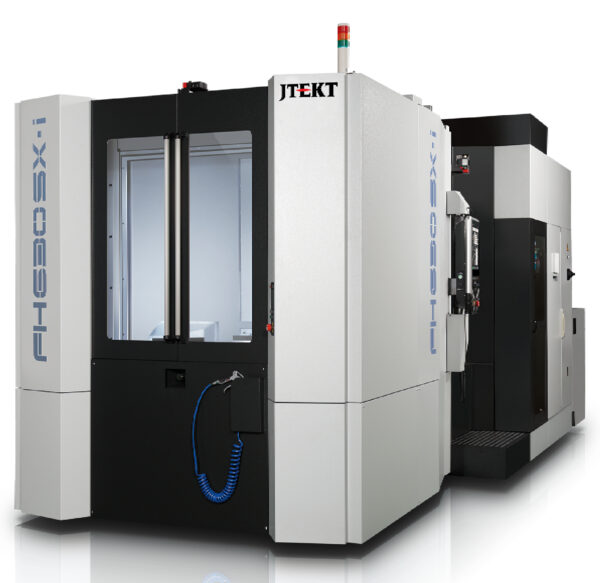

The FH630SX-i is an industry-leading high-precision Horizontal Machining Center from JTEKT TOYODA, optimized for a balance of speed, rigidity, and reliability. Designed around a 24.8-inch (630 mm) pallet, this machine is built to handle maximum pallet loads of up to 3,306 lb (1,500 kg) and maximum workpiece dimensions of 46.06 inches in diameter by 49.21 inches in height. Its exceptional rigidity is anchored by a Meehanite cast iron base and enhanced by a dual ball screw drive mechanism on both the Y and Z axes.

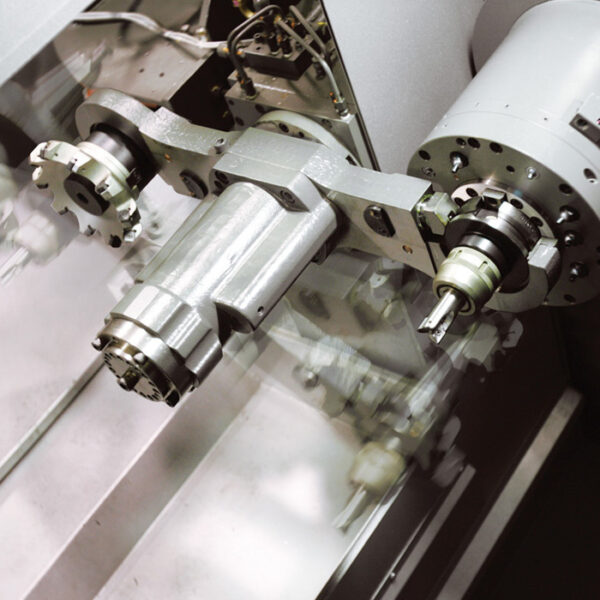

Performance is driven by a high-speed spindle, standard at 8,000 RPM, with an optional 15,000 RPM high-torque spindle that delivers a massive 887 ft-lb (1,202 Nm) of torque. The machine’s productivity is further boosted by its rapid feed rate of 2,362 ipm (60 m/min) across the X, Y, and Z axes, reducing non-cutting time. The FH630SX-i maintains tight control over quality with linear positioning accuracy of .00012 inch (.003 mm) full stroke and a rotary table index accuracy of 7 arc seconds. Tool management is flexible, with storage options ranging from 60 to 330 tools. This versatile machine is successfully used for manufacturing parts from challenging materials, including ferrous steels, non-ferrous aluminum, and high-temperature alloys such as Inconel and Titanium.
