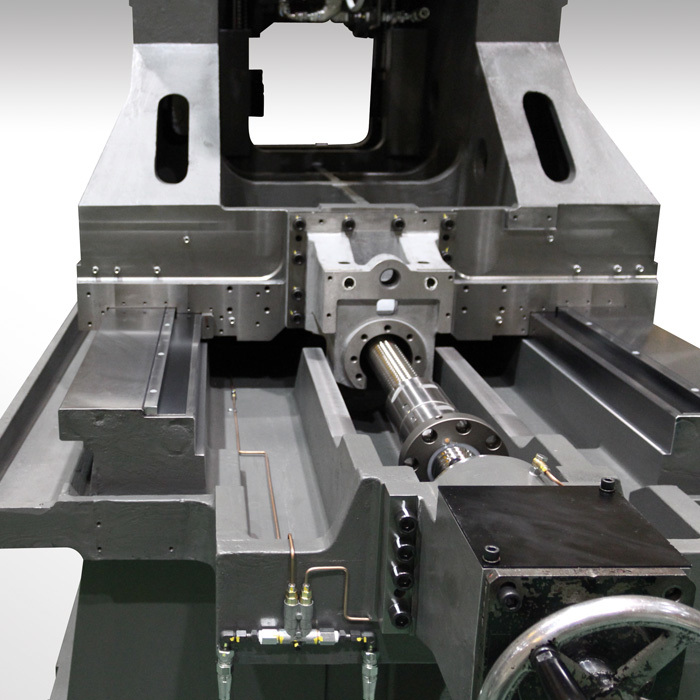

The FA800S Horizontal Machining Center from JTEKT-TOYODA’s 800mm Pallet series is engineered for uncompromising power and accuracy in heavy-duty applications. Its core strength lies in its construction- featuring a robust column and bed paired with durable box guideways. This combination provides exceptional damping characteristics and rigidity- crucial for maximizing tool life and maintaining tight tolerances when performing aggressive cuts on challenging materials. The machine’s 31.5-inch x 31.5-inch (800 mm x 800 mm) pallet can accommodate large workpieces up to a 62.99-inch (1,600 mm) swing diameter and a substantial 5,500 lb (2,500 kg) maximum load.

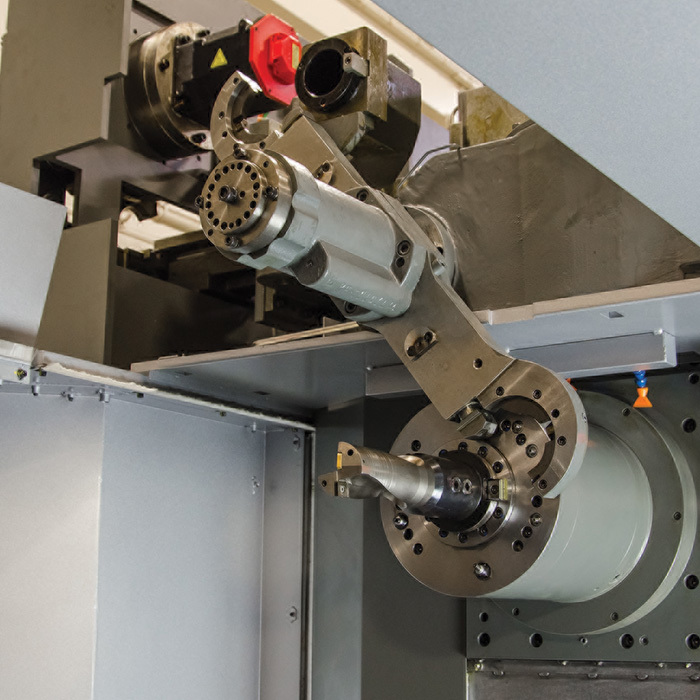

Standard performance is driven by a 6,000 RPM direct-drive CAT50 spindle– with options available for a geared-head spindle for maximum torque or a 15,000 RPM spindle for high-speed machining of non-ferrous materials. The FA800S ensures high throughput with rapid feed rates of 944 ipm (24 m-min) across the X- Y- and Z-axes, which offer 53.1 inches (1,350 mm) of X-axis travel and 45.2 inches (1,150 mm) each for the Y- and Z-axes. Furthermore, the machine is built for precision, achieving Linear Position Accuracy of ± 0.00012 inches (± 0.003 mm) full stroke and a Rotary Table Index Accuracy of ± 3 arc seconds. The FA800S is the ideal heavy-duty platform for industries requiring reliability and precision when processing large ferrous and high-temperature alloy components.
