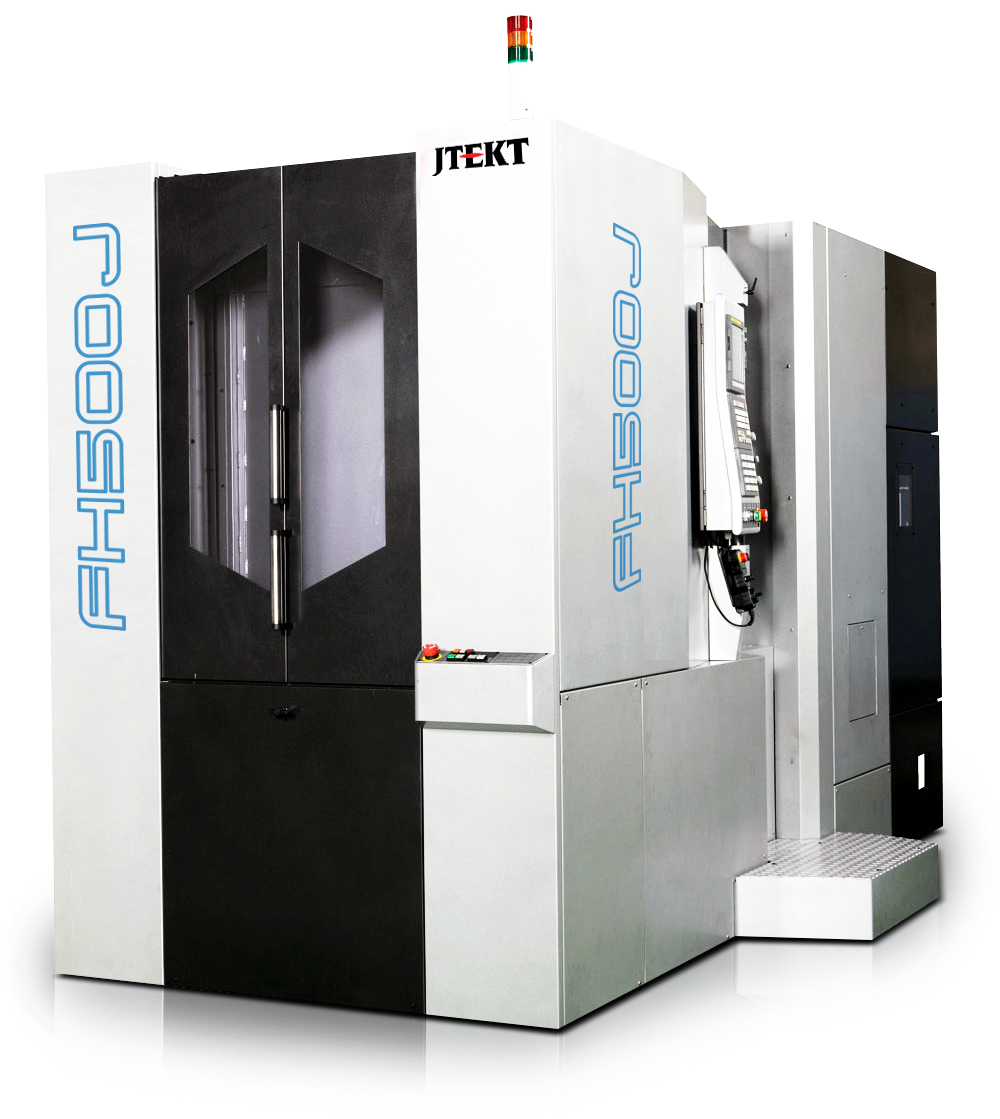

The JTEKT TOYODA FH500J is engineered for manufacturers who demand a combination of speed, precision, and high reliability from a compact 500 mm pallet platform. This horizontal machining center is a top choice in JTEKT’s J-Series- designed for highly productive environments across diverse materials, including ferrous, non-ferrous, and high-temp alloys like titanium and stainless steel. The machine’s core performance is driven by a high-speed 15,000 RPM spindle and ultra-fast linear axis movement- with rapid feed rates reaching 2,362 ipm (60 m/min) in the X, Y, and Z axes.

The robust design ensures exceptional accuracy- with a linear position accuracy of .00012 inches (0.003 mm) full stroke and a repeatability of .00008 inches (0.002 mm). The Direct Drive B-Axis Table is a significant feature- enabling 360,000-degree continuous positioning with an extremely quick 0.5-second 90-degree index time, which drastically cuts down non-cutting time. With generous travels of 28.74 inches in X and Y, and 33.46 inches in Z, and a maximum pallet load of 1,540 lb (700 kg), the FH500J delivers the power and geometry to handle a wide range of complex prismatic parts efficiently.
