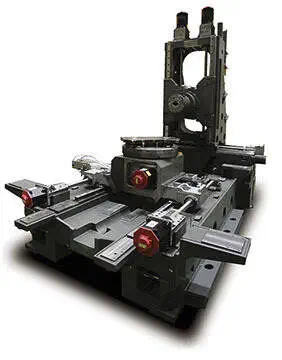

The JTEKT-TOYODA FH550SX is a premier 500-550 mm pallet size Horizontal Machining Center engineered to deliver exceptional throughput and precision in demanding production environments. Its foundation is a Meehanite cast iron base, providing a high-rigidity structure that minimizes vibration and ensures stable machining, even during aggressive material removal. The machine features large working travels of 750 mm (X), 800 mm (Y), and 850 mm (Z), accommodating parts up to 1,000 mm in height.

Driving its high-performance capabilities is a choice of spindles: a standard 8,000 RPM high-torque spindle for heavy cutting, or an optional 15,000 RPM spindle for high-speed machining (HSM) applications. Both options are powered by a 50 HP motor and utilize a CAT50 spindle mount. The machine is built for speed, boasting a rapid feed rate of 60 m-min (2,362 ipm) and enhanced motion control through dual ballscrew drives on both the Y and Z axes. With a generous 60-tool automatic tool changer capacity and a robust 800 kg table load capacity, the FH550SX is the definitive platform for highly efficient, continuous production of medium-to-large prismatic components.
