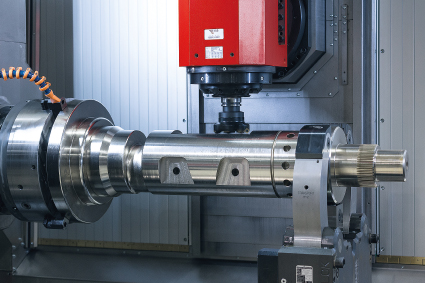

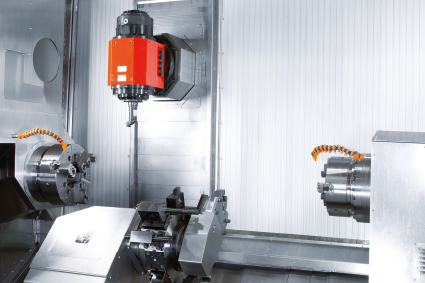

The HYPERTURN 100 POWERMILL from the EMCO HYPERTURN series is a highly sophisticated turning and milling center designed for maximum flexibility and productivity. This machine excels at the complete machining of complex workpieces up to a 720 mm maximum turning diameter and an 800 mm swing over bed. Its multi-tasking capability is driven by its core features: a robust main spindle and counter-spindle (up to 53 kW and 4400 Nm) that function synchronously, and a flexible milling spindle with a 12,000 rpm capability for all turning, drilling, and milling operations.

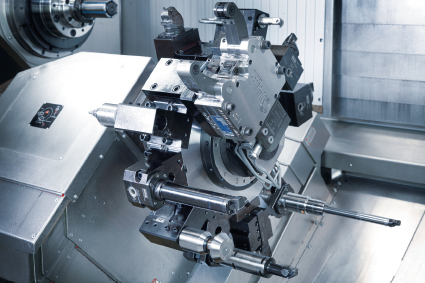

The machine’s capacity is further enhanced by its expansive tool management system, which offers a choice of 40 or 100 tool stations, alongside a 3-position pick-up magazine for larger boring bars. It supports 5-axis simultaneous machining and is equipped with advanced features like automatic tool presetting and workpiece measuring probes for ensuring first-part quality. Running on the Sinumerik ONE with EMCONNECT Digital Process Assistant, the HYPERTURN 100 POWERMILL integrates digital process support and virtual machine technology for collision monitoring, shorter set-up times, and maximum operational safety. With travels up to 3100 mm in the Z-axis, this robust machine, weighing up to 35,000 kg, guarantees temperature stability and maximum precision regardless of the machining duration.
