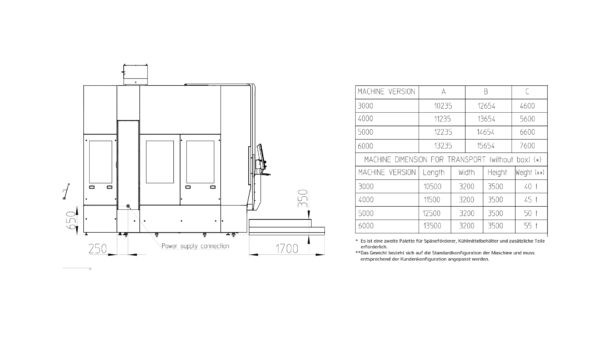

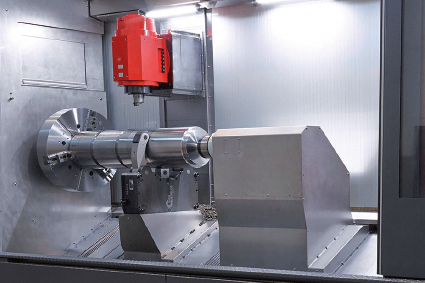

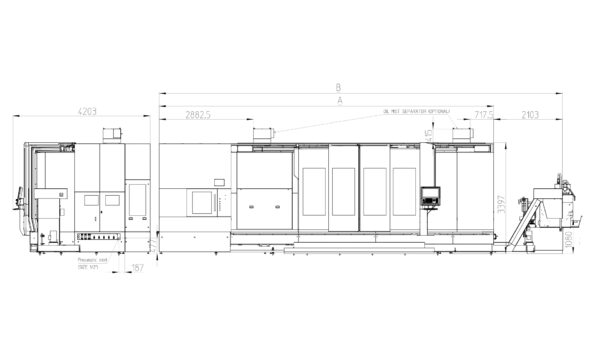

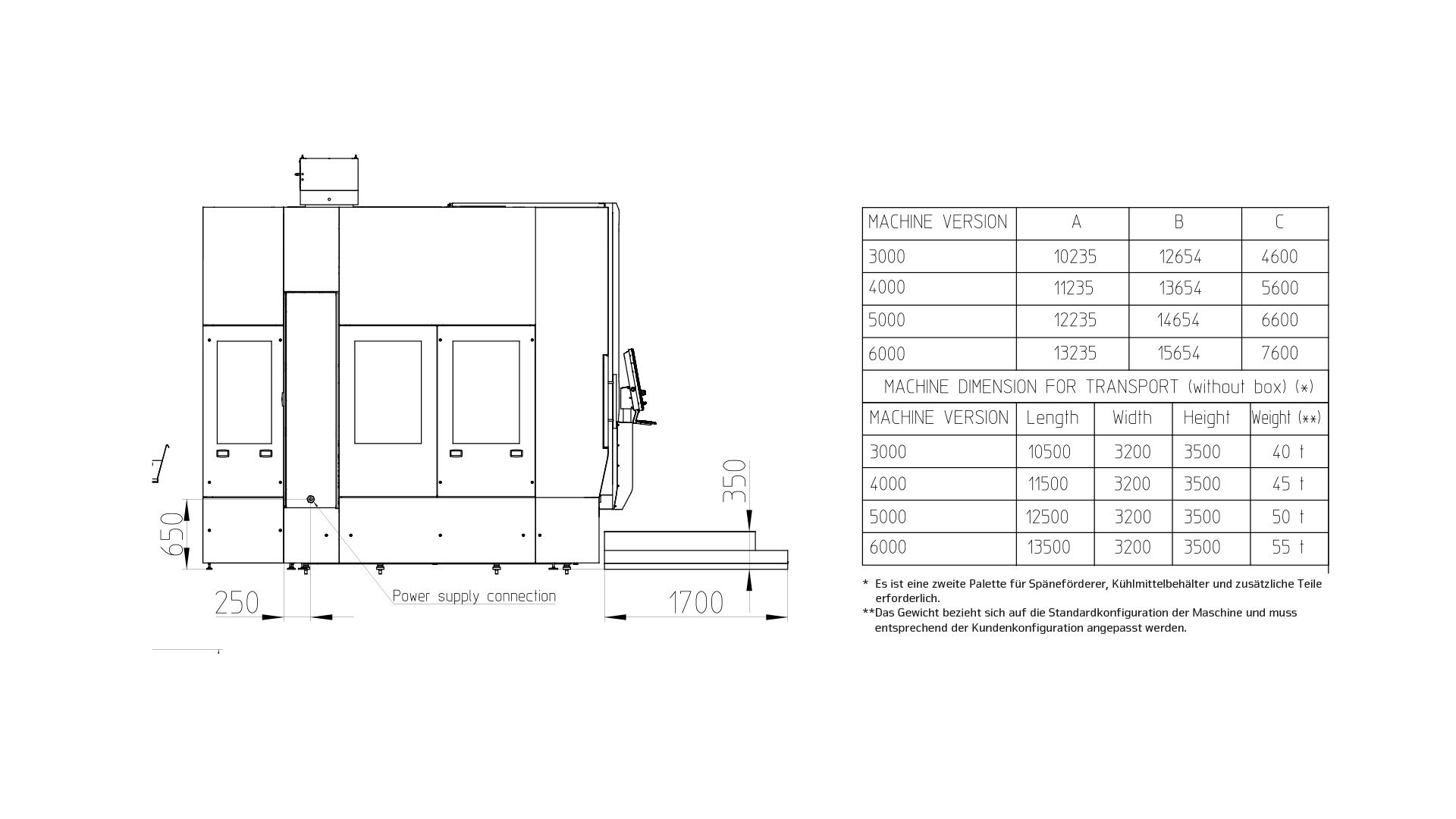

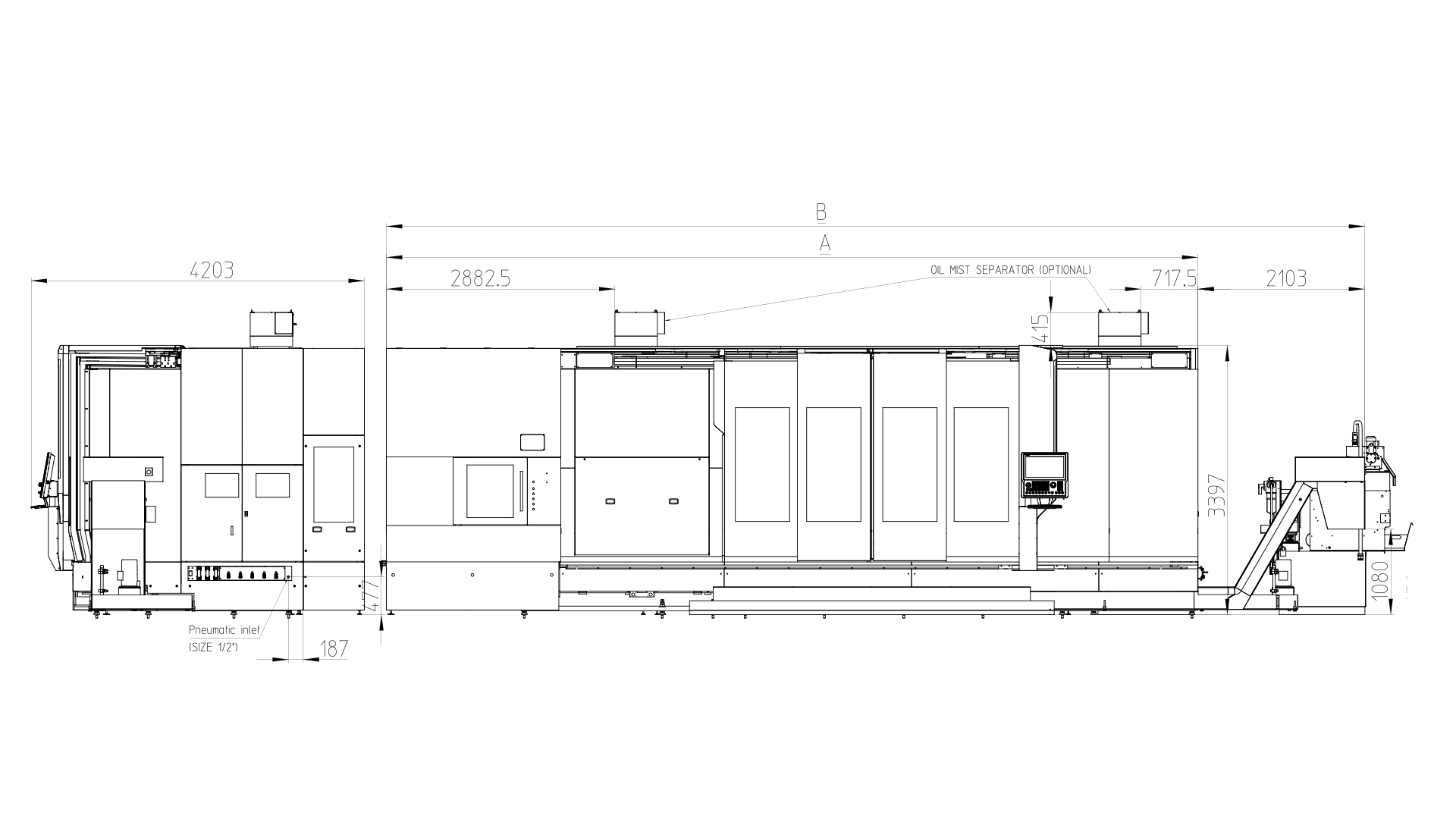

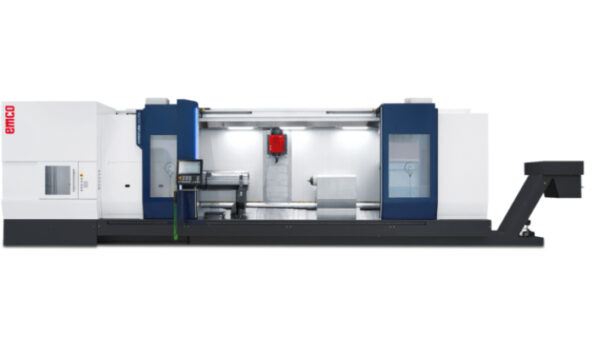

The HYPERTURN 200 POWERMILL is the definitive Horizontal Turning Center for manufacturers requiring the highest performance and capacity for large-scale components. Designed with a very large working space, this CNC turning machine enables complete machining in a single setup for parts up to 1000 mm in maximum turning diameter and 6100 mm in maximum length (with tailstock). At its core are the powerful main spindle and counter spindle– both delivering up to 84 kW of drive power and a massive 6410 Nm of torque at 1800 rpm- ensuring high-performance processing of even the most demanding materials.

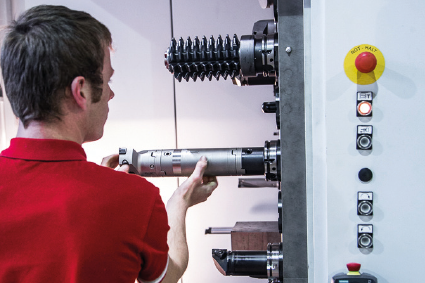

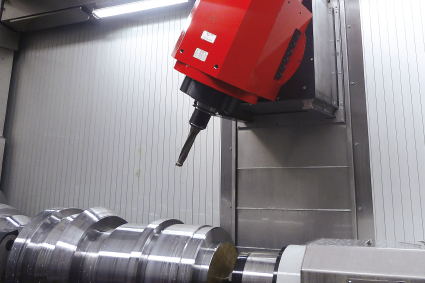

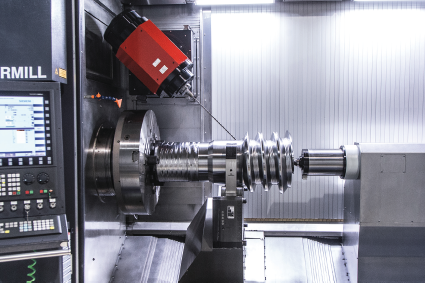

Versatility is provided by the dynamic and precise B-axis and the dedicated milling spindle. Customers can choose between two milling spindle versions: one with high torque (630 Nm at 6,500 rpm) or one with high spindle speed (340 Nm at 10,000 rpm)– utilizing either HSK-T 100 or PSC80 (Capto C8) interfaces. For tool management, the machine offers an extensive tool change system with capacities of 50, 100, or 200 tool stations. The machine is controlled by the state-of-the-art Multitasking-control Siemens SINUMERIK ONE, which includes the EMCONNECT Digital Process Assistant as standard, providing seamless digital integration and significantly reduced non-productive times. The HYPERTURN 200 POWERMILL is the comprehensive solution for manufacturers focused on high-speed, high-precision, and fully integrated turn-mill processing.
